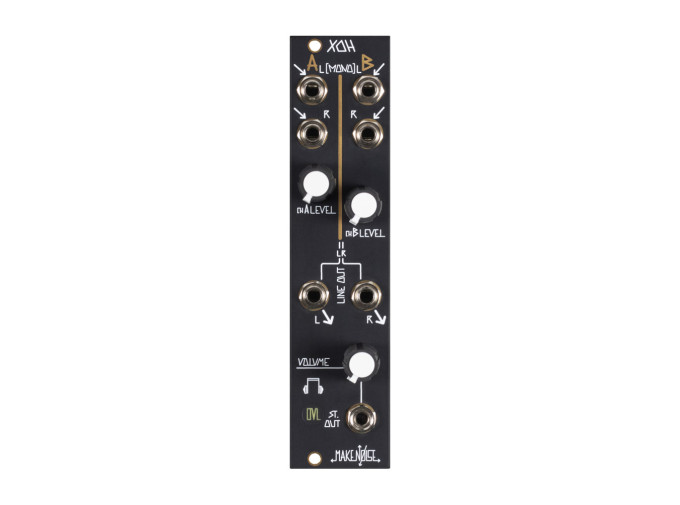

Make Noise XOH

The Make Noise XOH (miX Out Headphone) is a stereo mixer and line-level and headphone output module for Eurorack modular systems. Offering two stereo input channels with dedicated level controls, it is a great way to tie together multiple stereo sources for final output mixing and level conversion (from, say, an X-PAN, or a Mimeophon). It provides dedicated line-level outputs for both left and right channels, as well as a dedicated stereo headphone output with its own level control.

The left input for both A and B channels is normalled to the right input, so mono-to-stereo upmixing is possible. And additionally, the headphone output can act as a line level output with dedicated level control (versus the fixed-gain primary line outputs). Providing a simple solution to the age-old problems of modular stereo mixing and output level control, XOH is a welcome addition to any modular synth.

XOH Features

  • Stereo output module
  • Two channels of stereo input, each with dedicated level controls
  • Stereo line output
  • Stereo headphone output with dedicated level control
  • Overload LED indicator for simple level monitoring
  • Eurorack module
  • Width: 6hp
  • Depth: 24mm
  • Current draw: 40mA @ +12V, 40mA @ -12V
SignalRelated ArticlesIntegrating Modular Synthesizers Into Your Recording SetupShaking Up Your Studio Workflow—and WhyEurorack and Line Level SignalsGetting Everything Connected
Product Demo Videos
Make Noise XOH
The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

- Works well with stereo modules: EV, MG, QPAS, X-PAN, MP
- Two mono/stereo input channels, ChA & ChB
- Independent level controls for ChA & Ch B - Two stereo outputs containing A/Bmix
- Independent unity gain L/R Line Level outputs
- TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
- Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear
