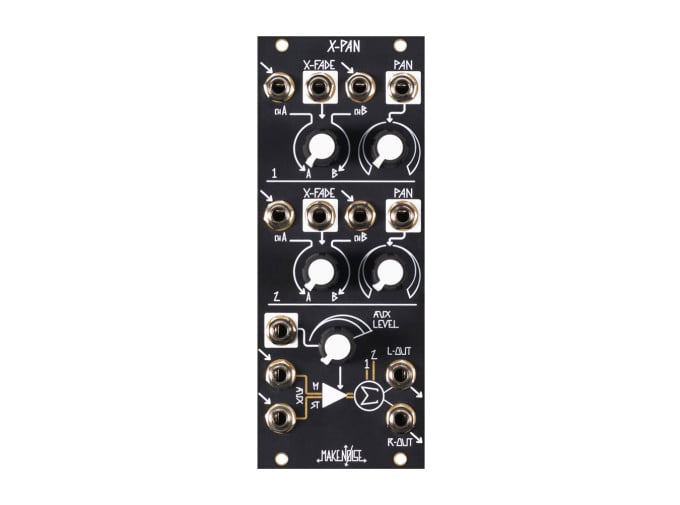

Make Noise X-PAN Voltage Controlled Mixer

The Make Noise X-PAN is a five-channel stereo mixer that is highly responsive to control signals, allowing for deep exploration of the stereo field. This means that the X-PAN can create fluctuating stereo sidebands thanks to an aptitude for audio rate crossfading and panning. X-PAN features two full featured stereo channels that boast voltage controlled cross-fading and panning.

The fifth is a simpler channel that serves as a stereo aux input, and also includes a stereo VCA. All of these channels are then combined into the Sum output.

However, the X-PAN isn't done yet, as the module also features direct coupled inputs and outputs. This gives X-PAN a secondary use as a complex CV router. With all these features, stunningly low noise, and a high-headroom signal path, X-PAN begins yet another chapter in Make Noise's legacy of innovation.

Make Noise X-PAN Features

  • 5 Channel Inputs all routed to a dynamic Stereo Output
  • CV controllable Panning, Cross-fading, and Mixing
  • High Headroom/Low-noise circuitry to maintain signal fidelity
  • Direct Coupled for use as a Complex CV router
  • Width: 10 HP
  • Depth: 30mm
  • Current Draw: 145mA @ +12V, 110mA @ -12V
SignalRelated ArticlesBuying Guide: Eurorack DelaysThe Best Echo Effects for Your Modular SynthesizerNew from Make Noise: PrssPnt + ChSvrMake Noise X-PANHow to Get Excited About a MixerA First Look at Make Noise's XPO Stereo OscillatorNew Module Revealed with Designer Tony RolandoStaff Picks: Best Electronic Music Gear of 2022Eurorack Modules, Drum Machines, Effect Pedals, Video Synths, and MoreSuperbooth 2019The More Synths, The Merrier
Product Demo Videos
Make Noise X-PAN
X-PAN is a compact and powerful 5 channel Voltage Controlled Stereo Mixer with Low Noise and High Headroom allowing for creation of complex panoramic audio imagery in just 10hp.

X-PAN is highly responsive to control signals allowing for exploration of the fluctuating stereo sidebands possible with Audio Rate Crossfading and Panning. X-PAN is Direct coupled for use as a CV Processing and Routing toolbox.

X-PAN consists of two full featured Channels and one simpler Channel. The top two Channels each have voltage controlled cross-fading and panning while the third Channel is a stereo aux input with stereo VCA. All three Channels are combined together at the stereo SUM outputs.

-5 signal inputs all routed to a dynamic stereo output
-Fully Voltage Controlled Panning, Cross-fading and Mixing
-Easy to maintain signal integrity with high headroom, low noise circuitry
-Highly responsive to all control signals including Audio Rate
-Audio Rate crossfading and panning, fluctuating stereo sidebands
-Aux Stereo Inputs controlled by Stereo VCA with Combo Pot
-Direct Coupled for use as Complex CV router
-Pairs well with QPAS and Morphagene
