InstruoCèis ADSR Envelope Generator
- No Hassle
- Low Prices

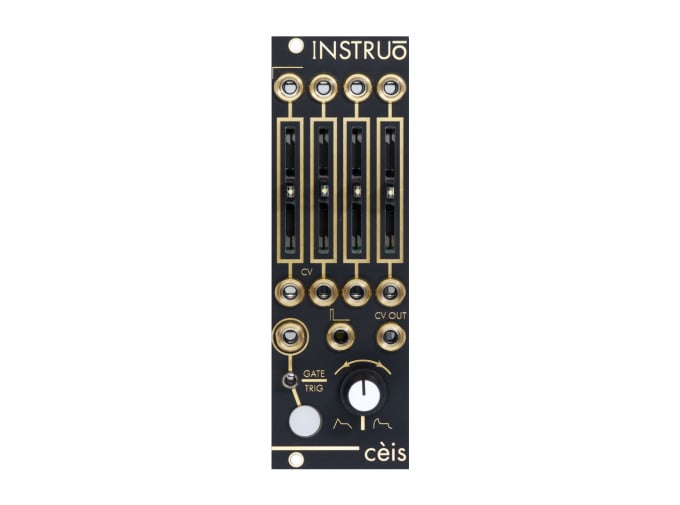

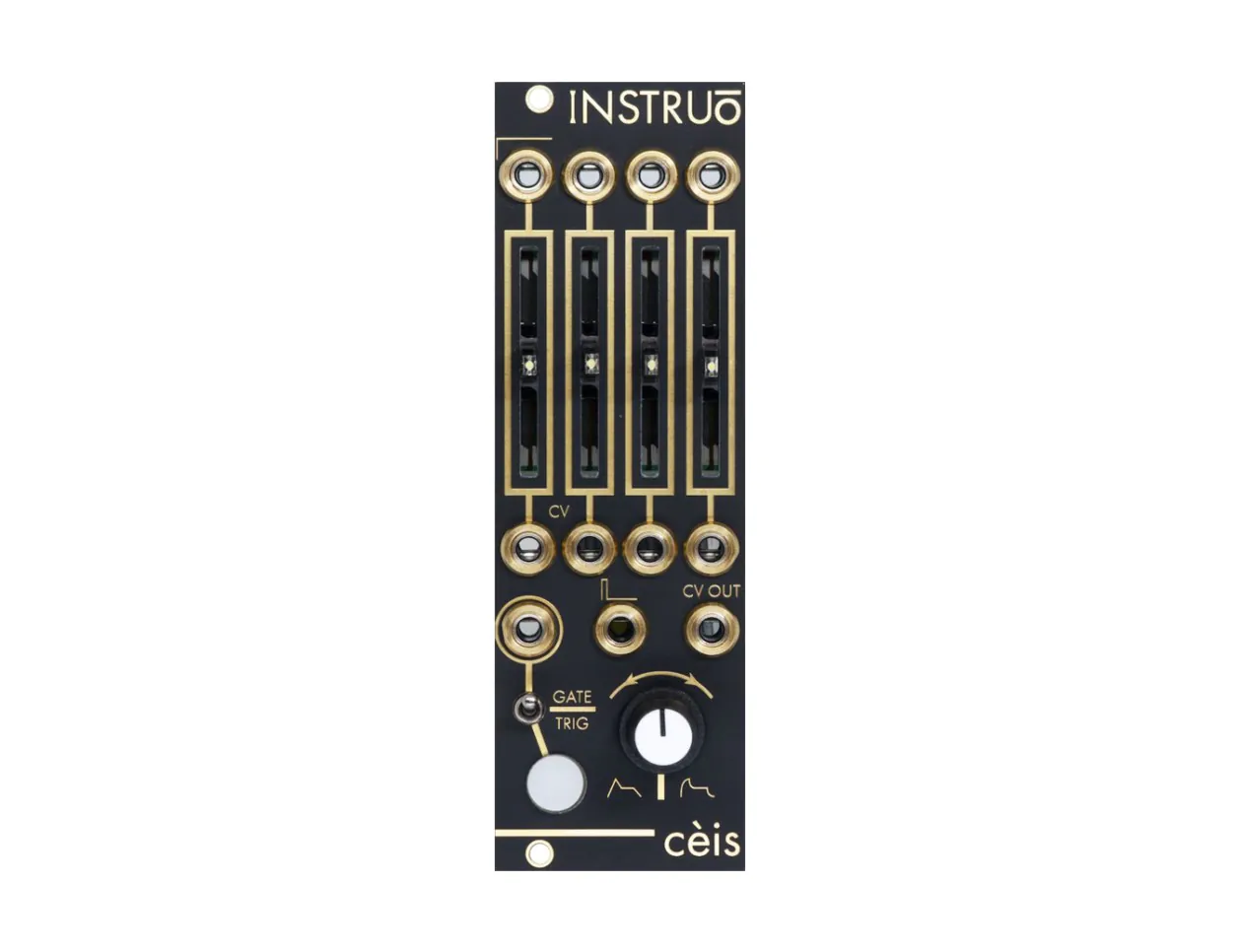

The Instruo Cèis is a feature laden take on the classic multistage ADSR genre of module. The Cèis features CV control of each stage of the envelope, as well as individual gate/trigger outputs for each segment. Add a trigger input and and a knob for morphing between logarithmic and exponential curve shapes, and you begin to realize the depth of function that Instruo Cèis offers.
- Individual Control of each stage of the envelope
- Manual Trigger
- Choice of Logarithmic or Exponential Curves.
- Eurorack module
- Width: 8hp
- Depth: 27mm
- Current draw: 60mA @ +12V, 30mA @ -12V
Cèis is a fully analogue, CV controllable ADSR envelope generator. The ADSR is a more traditional shapable voltage control voltage envelope used extensively in subtractive synthesis patches. The Cèis allows full voltage control over the 4 segment faders with multiple gate/trigger outputs for maximum versatility of a classic tool.
