Intellijel DesignsuMIDI USB / DIN MIDI + Clock Interface

Item#
N13-5096
6hp
$229.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

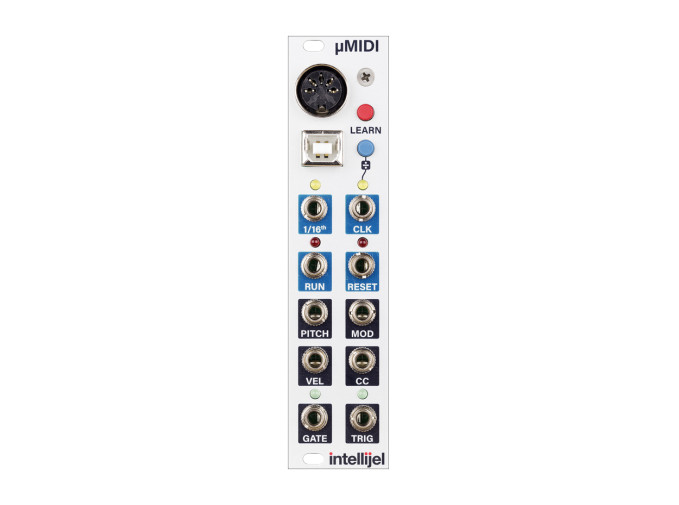

Intellijel uMIDI

The uMIDI is an essential tool for operating and synchronizing one’s Eurorack system from an external control source, such as a computer, iPhone/iPad, or MIDI controller device. The module is shockingly easy to use, with a front panel comprised of two simple buttons and absolutely no menu diving. All of this combined with a reasonable price tag and a small amount of HP size make the uMIDI an ideal choice for a dedicated MIDI to CV module.

uMIDI Features

  • High speed ARM processor for low latency & jitter
  • DIN or USB MIDI input
  • Two clock outputs, one with selectable divisions
  • Sequencer sync via run and reset outputs.Precision 0 – 10 V note pitch output with pitch bend & portamento CC support
  • Gate and trigger outputs for envelope triggering
  • Mod wheel and continuous controller outputs for additional modulation
  • Firmware updates over USB
  • Eurorack Module
  • Width: 6HP
  • Depth: 40mm
  • Current Draw: 47mA@+12V, 3mA@-12V
SignalRelated ArticlesIOS Apps, Hardware, and EurorackCreative Control Strategies: MIDI to CVConnecting the Old and the New
Product Demo Videos
Intellijel µMIDI Tutorial 1 - MIDI to CV
In this first part of the µMIDI tutorial series, we learn the basics of MIDI to CV conversion, along with what the µMIDI is, what it does, and why it is useful for a eurorack synthesizer.

The µMIDI provides all the essentials to control and sync your Eurorack modular from your computer, iPhone/iPad, or hardware MIDI device with a minimum of fuss. No menu diving or configuration scripts, just two buttons. The connectivity, feature set, and compact size make the µMIDI ideal for integrating your modular with the rest of your rig while not taking up too much space in your case.

The upper clock section features a dedicated 16th note clock output ideal for synchronizing a Eurorack sequencer like the Metropolis. A second clock output with selectable divisions can be used when difference sync events are needed. The run and reset outputs can be used to reset your Eurorack sequencers in tandem with any external sequencer or DAW.

The lower half of the µMIDI gives you everything you need to control a single voice synth via MIDI. Just connect either a USB or DIN MIDI cable to the module, LEARN a channel, and start playing.

Future firmware updates over USB are made easy with the Firmware Updater software.

Features
High speed ARM processor for low latency & jitter.
DIN or USB MIDI input.
Two clock outputs, one with selectable divisions.
Sequencer sync via run and reset outputs.
Precision 0 – 10 V note pitch output with pitch bend & portamento CC support.
Gate and trigger outputs for envelope triggering.
Mod wheel and continuous controller outputs for additional modulation.
Firmware updates over USB.
