Qu-Bit ElectronixCascade Ratcheting Envelope Generator / VCA

Item#
N13-01263
10hp
$299.00

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

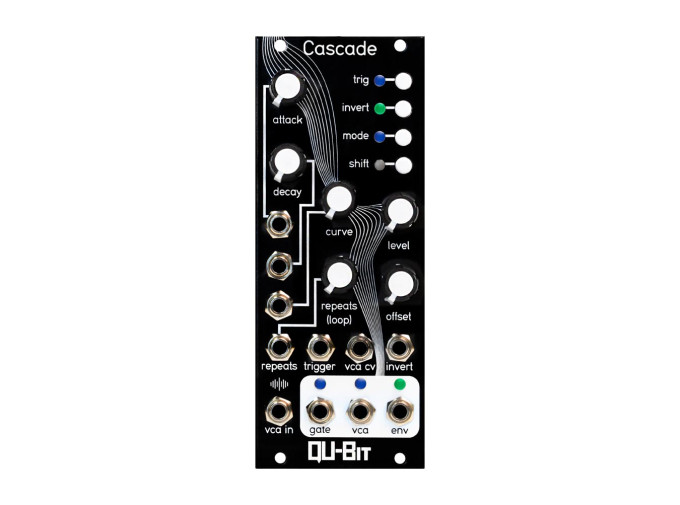

Qu-Bit Electronix Cascade

Qu-Bit's Cascade is a ratcheting envelope generator inspired by burst generators, providing a burst of envelopes with a single trigger. You can set the number of ratcheting repeats and CV control them, allowing for complex ratcheting behavior.

Cascade has two envelope outputs with level attenuators that range from 0–10V. It can act as an AD, ADSR, ASR, and a special bouncing ball mode. The bouncing ball mode models a ball bouncing off a surface with gravitational pull, speeding up and slowing down accordingly. Cascade can self-cycle, and has both end of rise and end of cycle trigger outputs. The freeze input allows you to track and hold the envelope and freeze it in time at its current voltage level. The curve of the envelope goes from exponential to logarithmic and is also CV controllable.

Cascade also includes an analog VCA, making it excellent for use as an end-of-voice VCA/envelope pair. Cascade provides the functionality of both an envelope and burst generator and excels at both, providing several envelope modes, track and hold, and CV over ratcheting.

Cascade Features

  • Ratcheting envelope generator
  • Feed single trigger in and repeat the envelope a certain amount of times
  • AR, ADSR, ASR, and bouncing ball modes
  • Curve shapes range from exponential to logarithmic
  • Two envelope outputs with independent level knobs
  • Can self cycle with a button or gate input
  • Track and hold freeze input
  • End of rise and end of cycle trigger outputs
  • Eurorack module
  • Width: 10hp
  • Depth: 28mm
  • Current draw: 131mA @ +12V, 40mA @ -12V
Product Demo Videos
Cascade: Ratcheting Envelope Generator First Look
Cascade is a ratcheting envelope generator, VCA, and sound source all within a compact form factor. The unique interactions of its feature set open up new worlds of rhythmic patching and modulation. Easily create ratcheting sequences, bouncy-ball modulation, and pumping compression, all within a single module.

At its core, Cascade is a powerful envelope generator, which is normaled to a high fidelity 2164 based VCA. You can patch in external audio to the VCA, or take advantage of 4 internal audio algorithms: white noise, 808 kick and hi-hat, and a high frequency sine tone. Cascade will open up your system in ways that make you wonder how you ever lived without it.

• Envelope output and internal audio generated at 96kHz
• High fidelity 2164 based analog VCA topology
• Analog signal path with digital control for envelope following, compression, and classic VCA behaviors
• Snappy envelopes all the way down to 500 microseconds in length
• Reprogrammable via the Daisy ecosystem
