NANO ModulesQUART Quad AD Envelope / LFO

Item#
N13-01064
10hp
$162.99

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

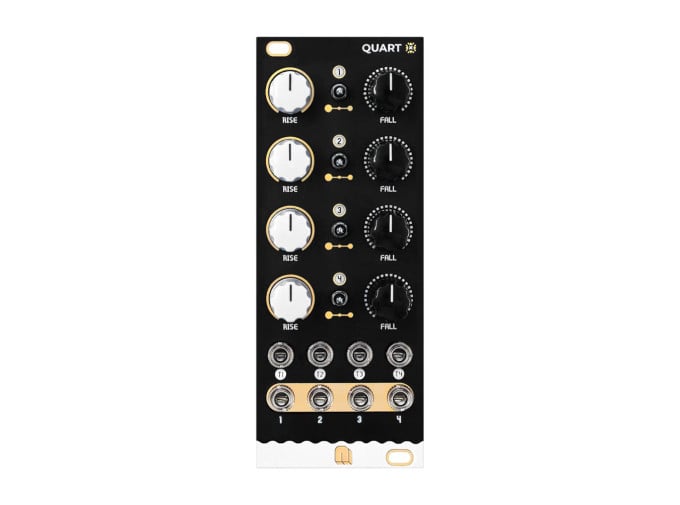

NANO Modules QUART

Quart from Nano Modules is a quad attack/decay envelope and LFO that is great from everything from snappy envelopes to long, evolving pads. Each channel has rise and fall controls, range switch, trigger input, and an output. With nothing patched into the trigger input, Quart acts as an LFO, with the speed determined by the rise and fall controls. The range switch has three ranges and the rise and fall speeds go from 0.1ms to 80 seconds.

QUART Features

  • Quad envelope and LFO
  • Rise and fall controls
  • Range switch per channel
  • 0.1ms to 80 second range
  • Acts as an LFO with nothing patched into the trigger input
  • Eurorack module
  • Width: 10hp
  • Depth: 15mm
  • Current draw: 25mA @ +12V, 6mA @ -12V
