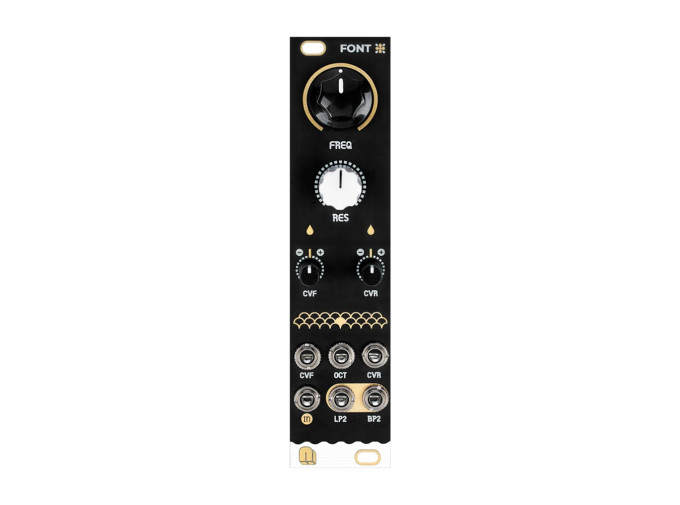

NANO Modules FONT
The NANO Modules FONT is a 2-pole multimode filter for Eurorack modular synthesizers, providing a huge, liquid sound perfect for basslines, percussion synthesis, and more. With simultaneously accessible lowpass and bandpass outputs, FONT is perfect for bringing wet, thick filtering to any sound source.
FONT responds excellently to sounds in any part of the frequency spectrum, and can even be pinged with low-frequency signals to create dampened percussion sounds. It offers CV control of cutoff and resonance, each with dedicated attenuverters—allowing a huge variety of sonic animations from traditional sweeps to FM and more.
FONT produces a clean sine wave at high resonance settings—use this in conjunction with the 1V/Oct control input for a clean sine oscillator, or apply a pitch envelope to create huge kick and tom sounds.
Their second offering to the Eurorack realm, the NANO Modules FONT provides a huge range of features in a slim package, with a sound guaranteed to bring it to the forefront in a world seeking excellent filter sounds.
- Multimode filter for Eurorack modular synthesizers
- 2-pole Low Pass and 2-pole Band Pass outputs available simultaneously
- Resonance extends into self-oscillation
- CV inputs for cutoff frequency and resonance, each with dedicated inverting attenuators
- 1V/Oct pitch input
- Eurorack module
- Width: 6hp
- Depth: 15mm
- Current draw: 22mA @ +12V, 25mA @ -12V
