Make NoiseFunction Control Voltage Generator

Item#
N13-4629
8hp
$165.00

Backorder Reserve your order today!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

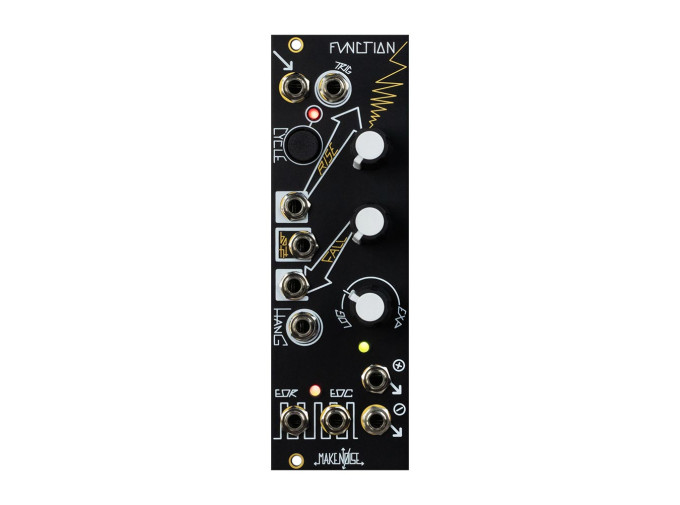

Make Noise Function

The Make Noise Function Module is the little brother of the Maths. It is a single channel function generator with all the same goodies as the Maths: VC Rise and Fall, a knob for exponential to logarithmic shaping, Gate and trigger inputs, and a cycle switch. It has both End of Rise and End of Cycle gate outputs to easily translate analog to digital information, and two dedicated CV outputs, one unipolar positive, and the other unipolar negative. Something missing from Maths is the "Hang" function, which pauses the voltage output whenever a positive gate is patched into it. This can create sample and hold like effects if the module is cycling, as well as complex envelopes or modulation waveshapes.

As mentioned in the page for Maths, having an entire synthesizer that is exclusively Function modules would be a very powerful synth, with every essential function covered by the versatility of the Function module.

Function Features

  • Analog Computer Module Designed for Musical Control Voltage Manipulation and Generation
  • Generates a variety of linear, logarithmic, or exponential functions
  • Functions as short as 2ms and as long as 25 minutes per cycle!
  • Triggered Functions (Envelope)
  • Continuous Functions (LFO)
  • Invert and/ or Integrate (Lag, Slew, Portamento)
  • Discrete Time Functions (S&H, T&H)
  • LEDs indicate activity on all outputs
  • End of Rise and End of Cycle Pulses facilitate programming of more complex functions
  • All outputs capable of driving a passive 4 way mult without loading effects (no buffered mult needed here)
  • Perfect for modulating the DPO and just about anything else
  • Eurorack Module
  • 8 HP Width
  • 24mm Depth
  • Current Draw: 30mA @ +12V, 20mA @ -12V
SignalRelated ArticlesThe Mojave Desert Modular Experiment: Dustin Wong + Takako MinekawaDustin Wong + Takako MinekawaGuitar + EurorackProcessing and ControlLearning Synthesis: Randomness Pt. 2Pt. 2: Foundations with Buchla and SergeGetting Started with Modular Synths with Sarah Belle ReidPlanning Your First Eurorack System
Product Demo Videos
Elektron Analog Four MKII With A Tiny Modular Synth
This video shows how an Elektron Analog Four MKII can be used with a eurorack modular synthesizer. The Analog Four can output 4 CV signals for triggering and controlling sounds from the modular and the modular can be plugged into the Analog Four to be mixed with the other voices and be run through the effects. The Analog Four is triggering a Noise Engineering Basimilus Iteritas Alter, WMD Chimera and Make Noise synth made with STO, Function and LxD.

Analog Four MKII available here: https://www.perfectcircuitaudio.com/elektron-analog-four-mkii.html
Make Noise FUNCTION
FUNCTION is part of the MATHS family of control voltage utility modules. It is a small analog computer designed for solely musical purposes.
Generate a variety of linear, logarithmic, or exponential functions

Functions as short as 2ms and as long as 25 minutes per cycle!

Triggered Functions (Envelope)

Continuous Functions (LFO)

Invert and/ or Integrate (Lag, Slew, Portamento)

Discrete Time Functions (S&H, T&H)

LEDs indicate activity on all outputs

End of Rise and End of Cycle Pulses facilitate programming of more complex functions

All outputs capable of driving a passive 4 way mult without loading effects (no buffered mult needed here)

Perfect for modulating the DPO and just about anything else
