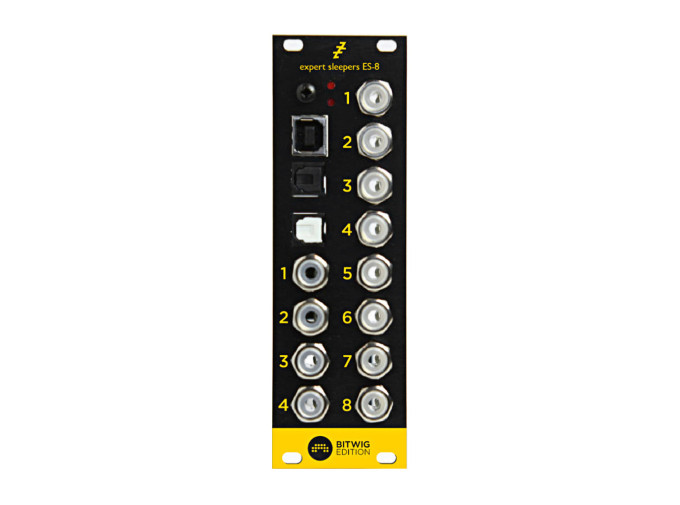

Expert SleepersES-8 USB Audio Interface (Bitwig Edition)
Item#
N13-7899
8hp
$459.00
-
Free
Shipping -
No Hassle
Returns -
Extended
Warranty -
Low Prices
Guaranteed
FREQUENTLY BOUGHT TOGETHER
-
- Expert Sleepers ES-6 mk3 CV to Lightpipe Interface 4hp$160.00Out of Stock Reserve your order today!
-
Expert Sleepers ES-8
The ES-8 is a USB 2.0 interface that is the perfect way to integrate one's modular synthesizer with their computer hardware and software. Its DC-coupled inputs and outputs ensure precise processing of both audio and CV signals and render the module compatible with CV generation software (Silent Way, Reaktor, Max/MSP, CV Toolkit, etc). Additionally, the ES-8 sports ADAT inputs and outputs, allowing it to connect directly to an audio interface and provide extra preamps or 1/4" outputs. It can also connect to the ES-5 and ES-6 via expansion header.
ES-8 Features
- Limited edition Bitwig faceplate
- Includes Bitwig 8-Track license
- USB socket: Type B
- Driver suport: class-compliant USB 2.0 (no Windows support initially)
- Channel count: 12 in, 16 out
- Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Output connections: 8x 3.5mm jacks, DC-coupled
- Maximum output voltage: approximately +/- 10V DC
- Analogue inputs: 4x 3.5mm jacks, DC-coupled
- Input voltage range: approximately +/- 10V
- Digital I/O: 1x ADAT input, 1x ADAT output
- Expansion headers: 1 for ES-5, 1 for ES-6
- Eurorack Module
- Panel width: 8HP
- Module depth: 50mm
- Current draw: 196mA on the +12V rail, 52mA on the -12V rail (at 96kHz)
Bitwig Studio 3 WalkthroughIntegrating Modular Synths + Sound Design in The GridRecording Your Modular SynthesizerRecording Concepts for Eurorack, Field Recorders, and Audio InterfacesProduct Demo Videos
Expert Sleepers ES-8 - Introduction
The Expert Sleepers ES-8 is a USB audio interface in a Eurorack synth module.
Simply connect the ES-8 with a USB cable directly to your Mac or iOS device and it appears as a 12-in 16-out audio interface ready to use for audio, control voltages, or both.
Both inputs and outputs are DC-coupled, meaning you can pass CVs in both directions between your hardware modular and software CV environments, such as Silent Way, Reaktor, zMors or max/MSP.
The ES-8 also has ADAT ports, which you can use to connect another audio interface, for example one with mic preamps or 1/4” jacks to hook up your other instruments.
You can also connect via ADAT to an Expert Sleepers ES-3 for more CV outputs.
The ES-8 also has a direct expansion connection for the Expert Sleepers ES-5, supporting up to 48 gate or trigger outputs.
Simply connect the ES-8 with a USB cable directly to your Mac or iOS device and it appears as a 12-in 16-out audio interface ready to use for audio, control voltages, or both.
Both inputs and outputs are DC-coupled, meaning you can pass CVs in both directions between your hardware modular and software CV environments, such as Silent Way, Reaktor, zMors or max/MSP.
The ES-8 also has ADAT ports, which you can use to connect another audio interface, for example one with mic preamps or 1/4” jacks to hook up your other instruments.
You can also connect via ADAT to an Expert Sleepers ES-3 for more CV outputs.
The ES-8 also has a direct expansion connection for the Expert Sleepers ES-5, supporting up to 48 gate or trigger outputs.
