Erica SynthsBlack LPG Low Pass Gate

Item#
N13-03043
10hp
$209.00

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

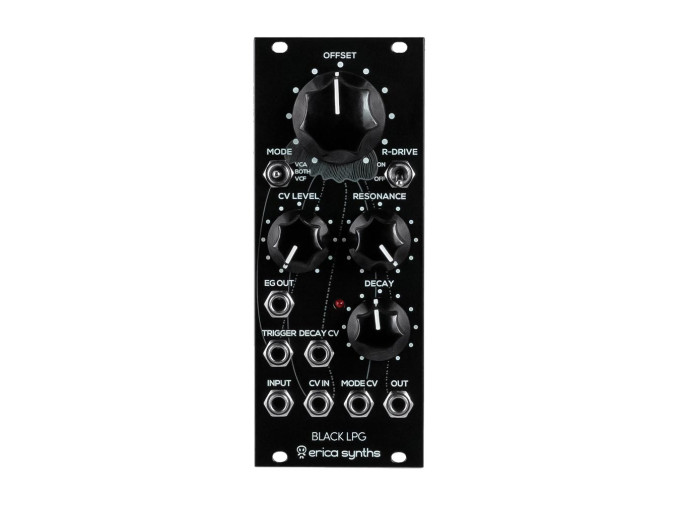

Erica Synths Black LPG

The Black series LPG from Erica Synths is a new iteration of the concept of a low pass gate, perfect for percussive hits with a natural-sounding decay. A low pass gate filters sound at lower volumes and decreases the filtering as they get louder, making the louder sounds brighter and quieter sounds darker. This is much the way that sounds behave in the natural world.

Erica Synths took a different approach than the classic Buchla LPG, using a second-order low pass VCF instead of a first-order. Included in the design is a resonance control, which adds emphasis to the filter at the cutoff point. A drive circuit connected to the resonance adds a bit of extra character to your sounds. LPGs tend to use vactrols, which impart a natural slewing effect to incoming signals. Erica also included a decay-only envelope to control the dynamics of the sound with more precision. This envelope features a dedicated output to route elsewhere in your system.

The Black LPG functions as just a VCA, just a VCF, or a combination of the two with CV control over the mode. Erica Synths' take on a low pass gate adds new features to this classic design, expanding control and expression possibilities.

Black LPG Features

  • Low pass gate
  • Great for the classic bongo sound
  • Second-order low pass VCF with three vactrols
  • Built-in envelope with dedicated output and CV over decay time
  • Resonance with drive control
  • VCA, VCF, or combination modes with mode CV
  • CV input with level control
  • Eurorack module
  • Width: 10hp
  • Depth: 35mm
  • Current draw: 44mA @ +12V, 45mA @ -12V
SignalRelated ArticlesLearning Synthesis: FiltersA Guide to Sweeping SuccessLearning Synthesis: VCAsDeveloping Dynamics and Modulating ModulationWhat is a Low Pass Gate?More Than Bongos: Buchla, Eurorack, and BeyondWhat is West Coast Synthesis...Really?A Closer Look at Don Buchla's Legacy of Outsider Instrument Design
Product Demo Videos
Erica Synths Black LPG sound demo
Erica Synths Black LPG is our take on the Lowpass Gate idea – it’s designed from scratch featuring 2nd order lowpass VCF and VCA combo with distinct resonance circuit on top.
