Doepfer A-190-3
SKU
C21-0714
Doepfer

A-190-3 USB / MIDI-to-CV / Gate Interface

SKU
C21-0714
From $167.00

Product Options:


envelope Notify me when available
A-190-3 USB / MIDI-to-CV / Gate Interface
From $167.00

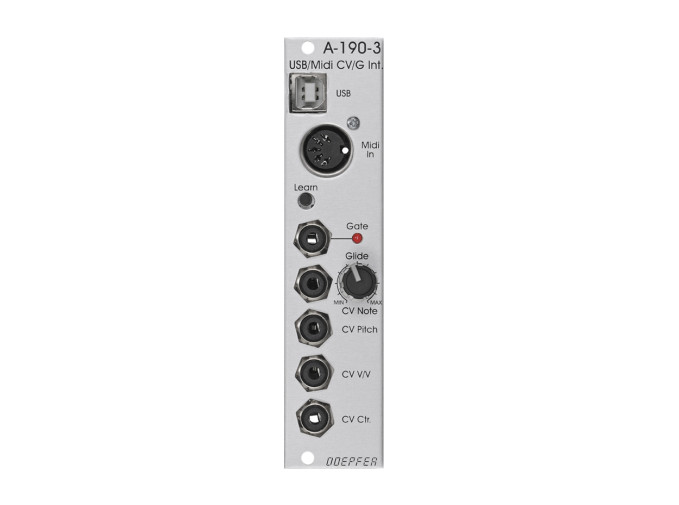

Doepfer A-190-3

The A-190-3 module is essentially the Eurorack version of the Dark Link sequencer. It converts USB/MIDI signals to analog CV/Gate signals and features four CV outputs with a single Gate output. The A-190-3 differs from its predecessor, the A-190-2, with the addition of USB functionality.

A-190-3 Features

  • USB
  • Midi Input
  • Learn button
  • Gate Out (with LED for Gate display and learn function), 0/+5V
  • CV1: controlled by Midi note messages, 1V/Octave, 0...+5V
  • CV2: controlled by Midi pitch bend, ~ -2.5...+2.5V or ~ 0...+5V (can be selected by an internal jumper)
  • CV3: controlled by Midi velocity, 0...+5V
  • CV4: controlled by Midi control change messages, free assignale controller in learn mode
  • Glide control (portamento function for CV1)

Product Details

  • Eurorack Module
  • Width: 6HP
  • Depth: 55mm
  • Current Draw: 60mA @ +/-12V
