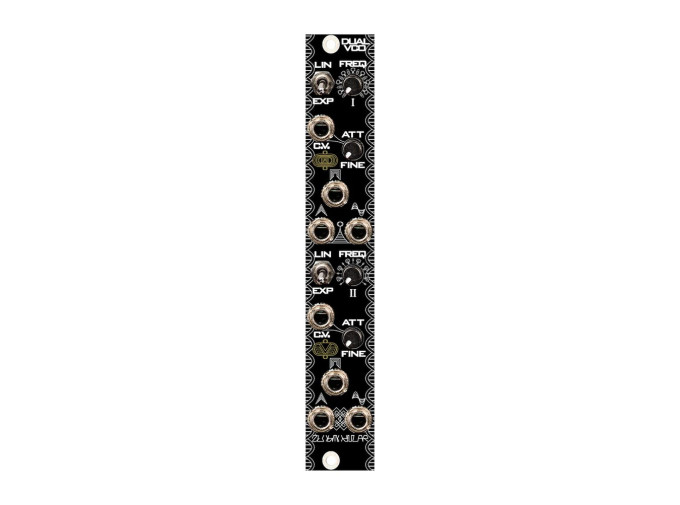

Zlob Modular Dual VCO

Zlob Modular’s Dual VCO packs two all-analog VCOs with three waveform outputs each into a pint-sized 4hp! These temperature-compensated oscillators are very stable, and each will track 1V/octave with relative accuracy up to 5 octaves. This module is an affordable yet powerful option for introducing more analog VCOs into a Eurorack system when space is limited.

Dual VCO Features

  • Dual analog voltage-controlled oscillator
  • Linear/exponential CV input switches
  • Fine-tune knob becomes CV attenuator when input is patched
  • VCO frequency range: 5 sec/cycle-18 kHz
  • Triangle, Square, and Sine waveform outputs per VCO

Product Details

  • Width: 4hp
  • Current consumption: 20 mA @ +12V, 38 mA @ -12V
  • Module depth: 45mm
  • Waveform output: 10V pp
