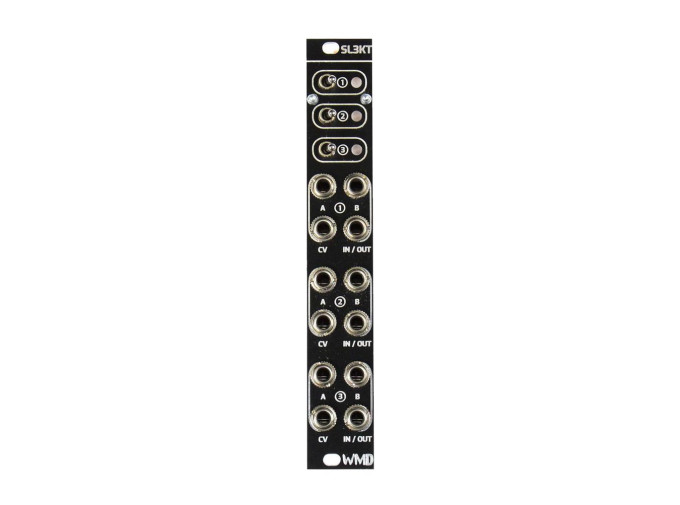

WMDSL3KT Triple Bi-Directional Switch
The WMD SL3KT, pronounced "select," is a three-channel switch perfect for routing audio or CV signals. The three independent two-way switches allow you to either route two inputs to one output or one input to two outputs.
The routing can be selected using either the switches on the top of the module or with the CV inputs. The switch position and CV inputs are normalized in a cascading fashion, allowing you to control all three switches from one switch or CV signal. This can be broken by inserting a cable into the jacks. It has many applications including extending sequences, boolean logic operations, group switching and routing, gating, waveform selection, and just about anything else that you can think of.
- Three-channel switch
- Bi-directional switching
- CV and switch control of routing
- Normalized connections between channels
- Negligible drop on 1V/Oct signals
- Eurorack module
- Width: 4hp
- Depth: 30mm
- Current draw: 10mA @ +12V, 10mA @ -12V
