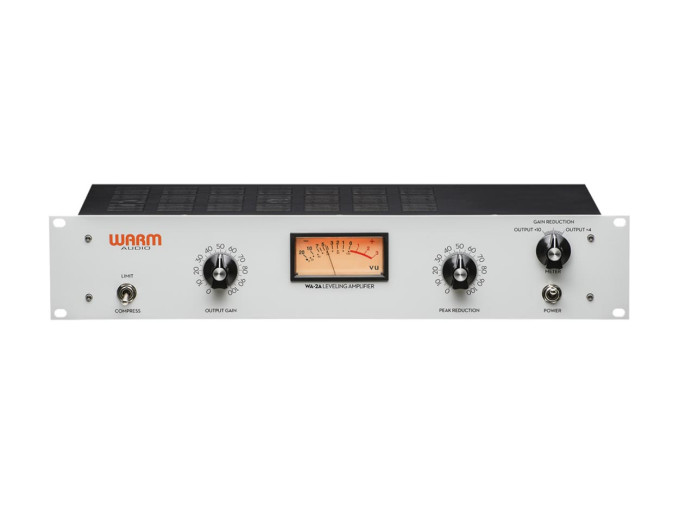

Warm Audio WA-2A
The goal behind the Warm Audio WA-2A was to bring the sound of the classic ‘2A style compressors to a more affordable price range. The unit features scouted tubes, meaning users can change them with other tubes for their own custom sound.
Additionally, all the classic controls are there: limit/compress, meter, peak reduction, and output gain all have dedicated front panel controls for effortless tweakability.
- Transformer Balanced, High Voltage, Optotube Compressor
- Socketed tubes to allow for retrofitting with other opto cells.
- Variable pre-emphasis allows for compression hipass filtering
- Stereo link capability
- Premium input / output CineMag USA Transformers
- USA made Kenetek opto attenuator
- Tung-Sol and Electro Harmonix tubes - x2 12ax7, x1 12bh7, 1x 6aq5
- Fully discrete signal path
- XLR and TRS balanced line level inputs - 600 ohms impedance
- XLR and TRS balanced line level outputs - 600 ohms impedance
- Frequency Response +/- 1 dB, 15 Hz to 20kHz
- Gain 40 dB ±1dB
- Input Level +16 dB maximum
- Output Level +10 dB nominal, +16 dB maximum
- Distortion Less than 0.1% THD at ±10 dBm
- Noise = -74dB
- Attack Time - 10 milliseconds
- Release Time - 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
- Meter shows both dB gain reduction and dB output
- Power - 115/230 volts (switchable), 50/60 Hz
- Dimensions - 19"" Rackmount chassis, 2U. 19"" x 7"" x 3.5""
- Weight - 12 lbs
