850 Modulation Source

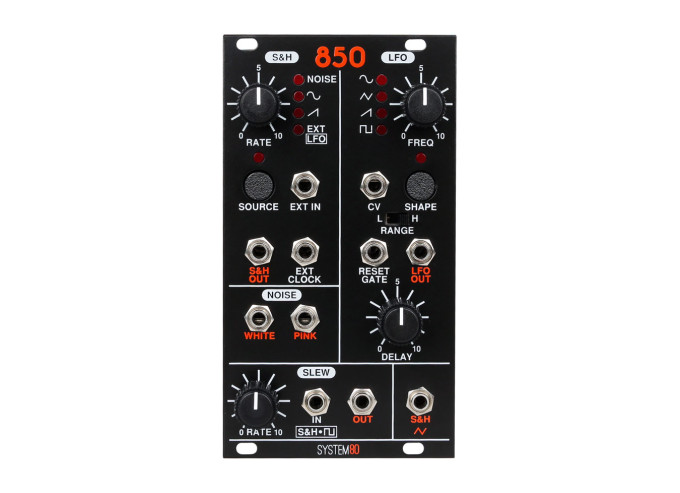

System 80 850

The System 80 850 is an all-analog module comprised of four sections: a voltage-controlled LFO, sample & hold, noise source, and slew limiter. The sample & hold is essentially the heart of the module, as the entire section is normalized to the LFO outputs and Pink Noise. Additionally, its output is normalized to the slew limiter's input so that an adequate amount of slew can be dialed in to the S&H. What's more, the S&H's clock can be configured as a triangle-shape LFO. Conversely, the primary LFO section consists of a delay circuit that can be triggered via rising pulse and features selectable sine, triangle, ramp, and square outs.

850 Features

• Voltage-controlled LFO with four selectable outputs: sine, triangle, ramp and square
• Slew Limiter normalized to S&H output or S&H clock pulse
• S&H clock acts as auxiliary triangle LFO
• Integrated White and Pink noise sources
• LFO Gate/Reset input
