System 80810 Synth Voice

No Longer Available Contact us for a recommendation.

System 80 810

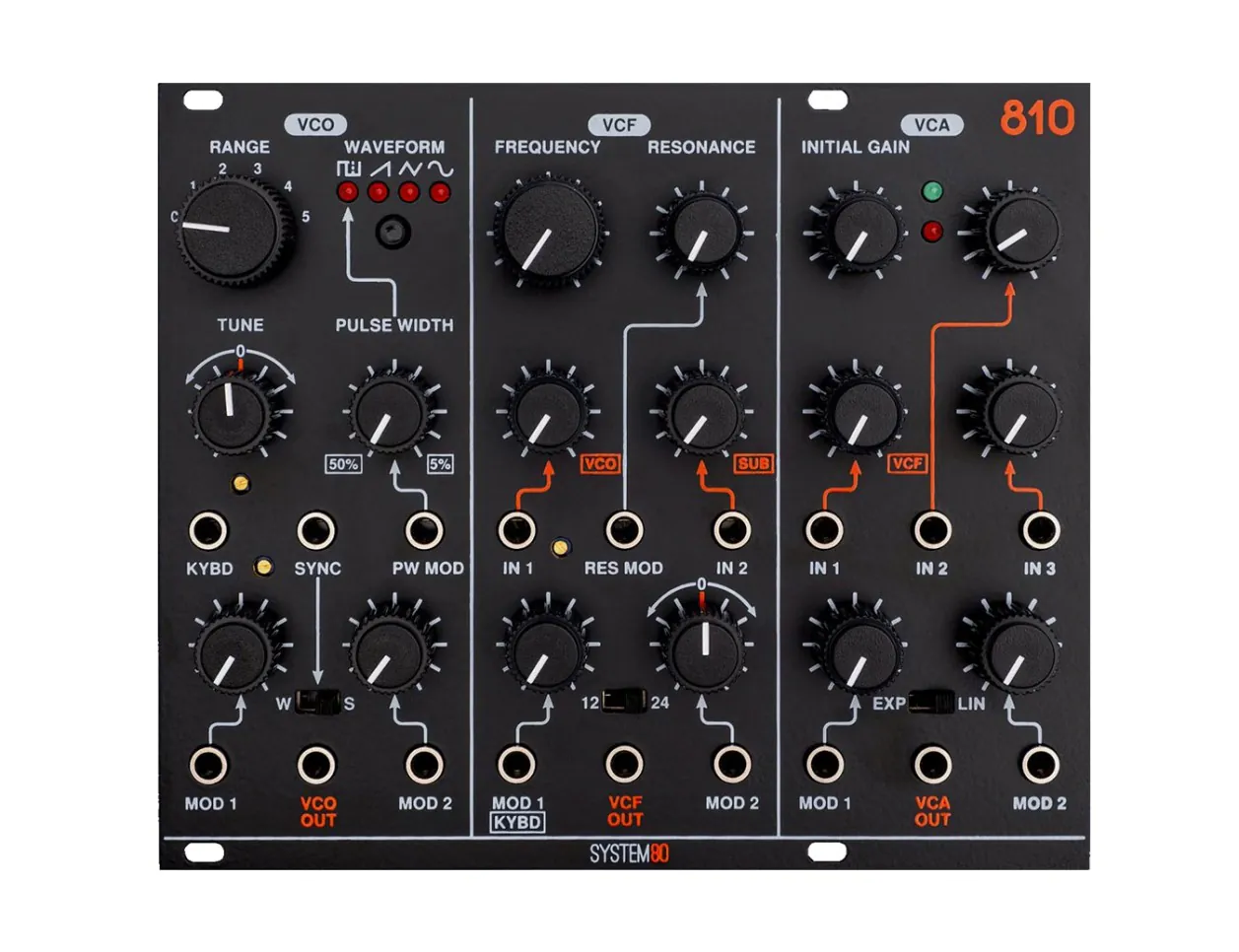

The System 80 810 is a full synthesis voice with a VCO, VCF, and VCA all housed behind one stylish black and red panel. While not strictly a clone, the 810 module takes definite cues in sound and design from the golden age of Roland synthesizers.

The VCO is a classic design with a 1V/Oct response, providing accurate tracking over 8 octaves. The VCO section also offers selectable waveshape, including pulse, ramp, triangle, or sine. A CV input for pulse width modulation provides instant access to classic PWM bass and lead sounds.

The VCF is an OTA design with 12 or 24dB operation. The filter can also self oscillate, providing 1V/Oct tracking over 3–4 octaves. It also provides voltage control of resonance, making it possible to create a huge array of complex, dynamic filtering and accentuation effects. The module's VCA is a traditional single OTA design,with two CV inputs with switches that change the inputs' response curves from exponential to linear. All of these factors combine to create a module of true depth that can shred a bassline like only a vintage Roland can.

810 Features

  • Full VCO, VCF, and VCA sections
  • Multiple Waveform Shapes including Sine, Ramp, and Puls
  • VCF utilizes 12 or 24dB resonant behavior
  • VCA inputs can be switched from Exponential to Linear
  • Eurorack module
  • Width: 30hp
  • Depth: 30mm
  • Current draw: 55mA @ +12V, 45mA @ -12V
Product Demo Videos
System 80 810 Eurorack Synthesizer Voice Based On Vintage Roland Circuits
System 80's 810 eurorack module has the full analog signal path for a synthesizer voice, the VCO, VCF and VCA. These are circuits from vintage Roland synthesizers with great sounding PWM on the VCO and the classic OTA 12/24db filter. Just add a sequencer or controller and a couple of envelopes and this module makes a complete synthesizer.

We sequenced everything in this video with Malekko's Varigate 4+ and Voltage Block and added drums from Endorphin.es Blck_Noir.
