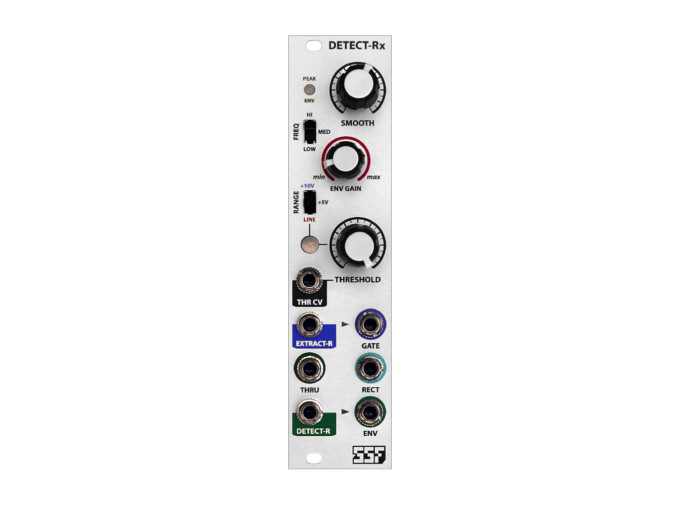

Detect-Rx Envelope Follower

Steady State Fate Detect-Rx

The Detect-Rx from Steady State Fate is a full-featured envelope follower which extracts a variety of useful voltages from virtually any input. Its analog envelope follower features adjustable voltage-controllable threshold and can be adjusted between line, +5V and +10V input levels. In addition to regular CV output, the Detect-Rx features a Rectifier output which inverts negative voltages, and an analog comparator for extracting gates from CV. These features, combined with adjustable frequency range, smoothing, and envelope gain, make the Detect-Rx useful for distortion and waveshaping of audio signals as well.

Detect-Rx Features

• Analog envelope follower
• Voltage-controllable Threshold with Input Range switch
• Envelope Frequency Range switch
• Envelope Gain control
• Smooth control
• Envelope follower normals to Comparator input when unpatched
• Gate output normals to Detect-R input when unpatched
• Buffered Thru output
• Rectifier output
• RGB inputvoltage indicator
• Peak LED indicator
