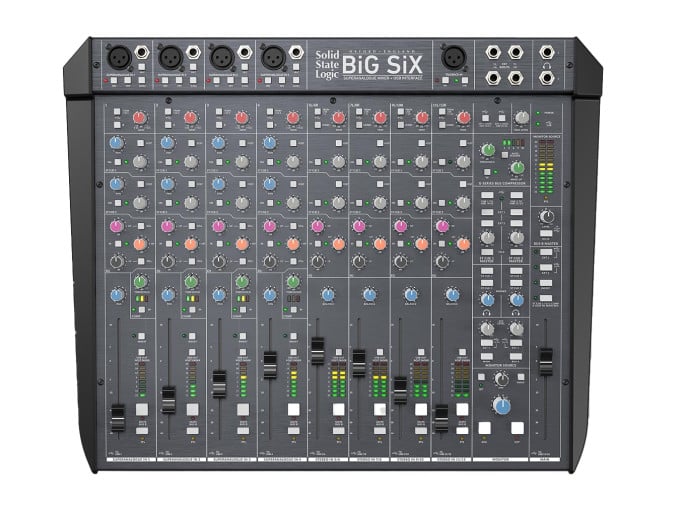

Solid State Logic BiG SiX
Sturdy and robust with a flexible routing system, Solid State Logic has made yet another brilliant desktop mixer built with complete one-to-one channel I/O as well as a 16-channel audio interface: welcome, the BiG SiX. Building upon the solid foundation that is the SSL SiX, BiG SiX is truly the natural successor that we've all been waiting for. Feeling truly like a collaboration between the SSL community and the brand itself, SSL has taken all the previous criticisms of SiX and implemented numerous improvements and additions, including channel count, inserts, and making this desktop mixer a highly customizable audio interface!
Sticking to the beautiful form and shape of the original SiX, the SuperAnalogue preamp channels, known as their "money channels", showcase the same high gain preamplifiers with the ability to support mic, line, and instrument signals. These money channels include an expanded three-band EQ with the addition of a mid frequency bell-shape band, while still retaining the flexible low and high frequency bands. Without compromising the one-knob ease-of-use, the channel compressor is now a much smoother experience for a larger pool of use-cases. Additionally, each money channel has an insert switch with dedicated 1/4" jacks on the back for sending and returning the affected signal, making it easy to setup without the need of the previous DB25 breakout setup.
Not only doubling down on the money channels, BiG SiX expands its number of stereo input channels to four, each with stereo balanced input jacks on the rear. These channels also include a fixed version of the fantastic three-band EQ found on the money channels, offering more sonic shaping throughout your entire mixdown. All of the channels previously mentioned not only have a wide range of gain, panning/balancing, and 100mm volume faders, but routing these signals has also become more flexible. The two stereo cues for each channel include a post-fader button option for the cue to represent what is being mixed in real time, and muting your channels still pushes your signals to the Bus B stereo output for further processing.
For additional signals that don't need tons of attention-to-detail on levels or EQing, the two external stereo inputs have a simple setup but still have multiple ways of being routed. Allow you AND your artists to monitor your signals with the two headphone outputs, with individual routing options to monitor stereo cue one and/or two, and alternate between two sets of studio monitors with the Alt button. Additional monitoring controls include dimming as well as muting, or cutting, the entire signal. Another tool to mention that needs no introduction is the G-Series Bus Comp that is engageable in a multitude of ways, but typically glues your signals together on the main bus for a solid final polish—now with an option for auto-release for smoother sounding release times! The main channel can also implement a master stereo insert for additional processing to your entire mix, such as a final EQ, extra compression, or anything else to finish your track.
To tie all these amazing features together, BiG SiX not only has a phenomenal back panel of routing options, but it also is capable of interfacing with your computer and DAW thanks to it being an audio interface. Sporting a USB-C port, BiG SiX has individual routing options per channel for a variety of use cases, blending digital and analog signals into one beautifully summed signal. If you want the power of SSLs renowned sound at your studio, be it personal or professional, add BiG SiX to your setup.
BiG SiX Features
- Summing desktop mixer and audio interface
- Up to 18 channels of analog summing at mixdown
- Four SuperAnalogue preamp "money channels", supporting mic, line, and hi-z inputs with +48V phantom power and high pass filter
- Money channels showcase flexible 3-band EQ and a one-knob compressor
- Money channels have individual insert send/return I/O
- Four stereo channels with 3-band EQ and mono switches
- 100mm channel faders, channel panning/balancing, mute and pre-fader listening buttons
- Two stereo pairs of external inputs
- Two stereo cues for external processing or listen back on the two headphone outputs, each with individual level control
- Bus B routing with stereo output via mute-switching
- Talkback mic with +48V phantom power and the amazing SSL listen mic compressor (LMC)
- G-series bus compressor with control over threshold, make up gain, and set or auto release
- Main channel with stereo output as well as stereo insert send/return I/O
- 96kHz/24-bit USB-C audio, interfacing 16 channels A/D and D/A across the 16 inputs/channels
- A variety of routing possibilities, two monitor outputs, and additional stereo summing input for cascading additional SiX/BiG SiX
- USB AD/DA: 96kHz & 24-bit over USB-C
- Channels: 16, offering to and from computer per channel
- Inputs: 4x SuperAnalog inputs: XLR & TRS 1/4", supporting mic, line, and instrument, 14x TRS 1/4" line inputs
- Outputs: 12x TRS 1/4"
- Send/Return: 6x TRS 1/4
- Talkback: 1x XLR input with +48V option
- Headphones: 2x 1/4" TRS with independent level controls
- Power: 4-pin 24V (PSU included)
- Dimensions: 23.6" x 21.26" x 10.24"
- Weight: 22.05lbs
In this video, Niall discusses the design principles behind BiG SiX, taking you on an in-depth tour of the feature set, where inspirations came from and how the evolution of SiX led to the next stage of SSL hybrid production tools, BiG SiX.
BiG SiX combines production tools from iconic SSL studio consoles with the latest in hybrid workflow. G-Series Bus Compressor with renowned ‘Auto’ release, 3 band E-Series EQ, glorious sounding mic pres with SSL channel processing and advanced routing and monitoring, all designed on a SuperAnalogue foundation and brought together with full USB integration.
BiG SiX is the essential SSL studio.
In this video, Toby Davies gives you some tips on how to create a live performance using BiG SiX, X-Echo and FlexVerb plug-ins.
