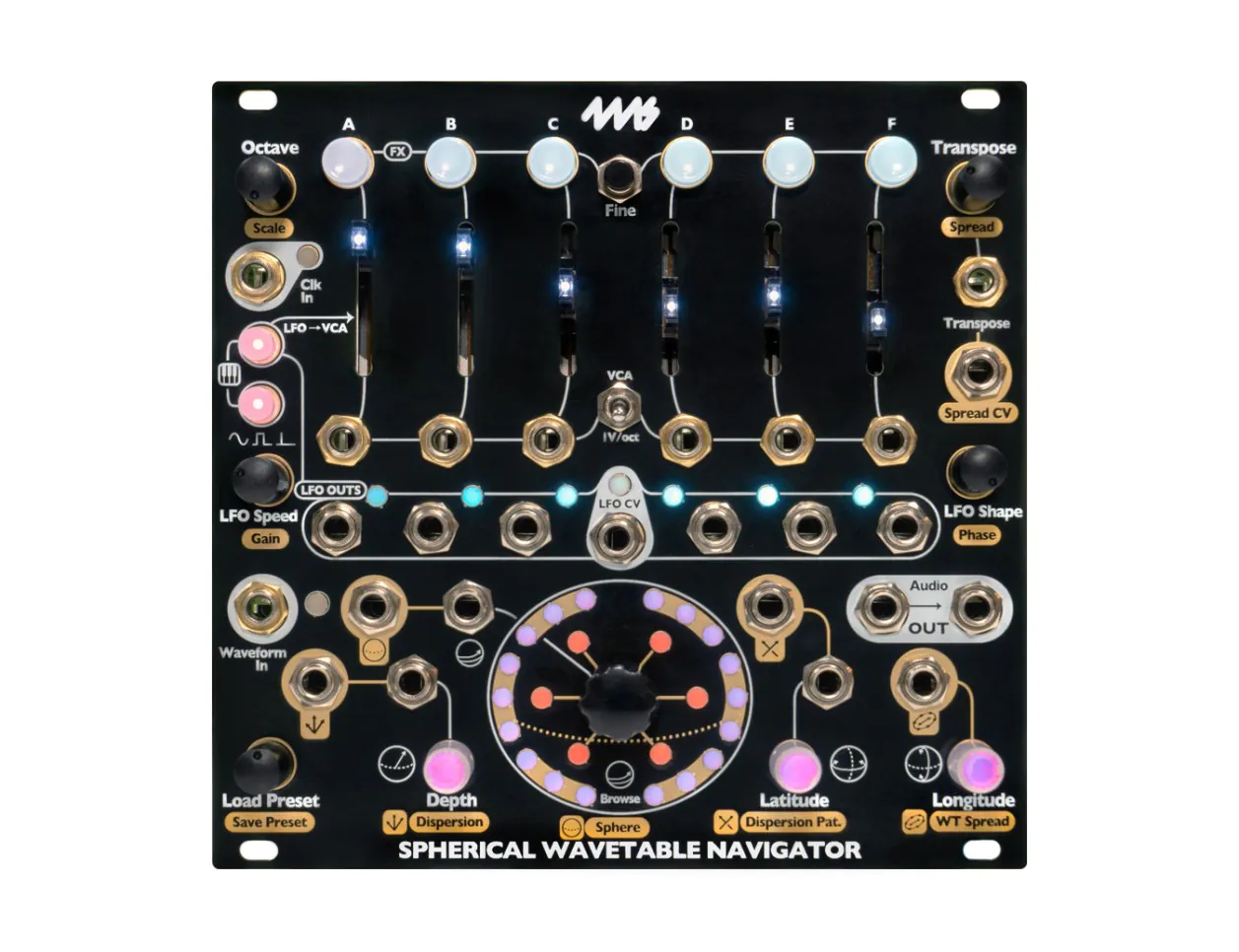

4MS Spherical Wavetable Navigator (SWN)

Spherical Wavetable Navigator (SWN) from 4MS is a powerful multichannel wavetable voice in a Eurorack format that can do anything from morphing, evolving drones to dense digital textures to precise polyphonic sequences. The module is comprised of 6 wavetable oscillators, each equipped with its own 1v/oct, amplitude, and level controls. Each channel can be internally quantized to one of many included scales. There are also 6 independent LFOs on board, which is more than plenty to accommodate for dynamics, and modulation in the patches. Each channel can be played independently via the row of buttons on top of the module. Out of the box, SWN comes with 12 spherical wavetabels however, users can easily add up to 108 custom waveshapes either by loading them onto the module or by recording audio directly via the designated Waveform In jack. Spherical Wavetable Navigator also features a custom multiplatform software SphereEdit for easy management, and editing of the 3-dimensional wavetables.

Spherical Wavetable Navigator (SWN) Features

  • 6 independently controllable wavetable oscillators;6 internal LFOs
  • Master transpose control
  • Wavetable In allows for any audio to be the source of new custom wavetables
  • Robust preset management system
  • Each oscillator channel can be processed by the intern DSP effects
  • Seamless morphing between wavetables
  • Custom SphereEdit software for management and editing of wavetables
  • Eurorack Module
  • 26 HP Width
  • Depth: 25mm
  • Current Draw: 185 mA @ +12V, 30 mA @ -12V, 0 mA @ 5V
SignalRelated ArticlesBest Eurorack Oscillators of 2019Favorite Modular Sound Generators This YearLearning Synthesis: WaveshapersA Guide to Destructive Sound Processing and Waveform DesignSynthesis Methods Explained: What is Wavetable Synthesis?Examining One of the Earliest Digital Synthesis Methods
Product Demo Videos
4MS SWN (Spherical Wavetable Navigator) Eurorack Six Voice Oscillator
The 4MS SWN (Spherical Wavetable Navigator) is a eurorack module with six wavetable oscillators that can produce thick drones as well as chords. The SWN gets its name from the fact that its wavetables are held within a three-dimensional sphere shaped space that can be morphed through and navigated. The SWN has the ability to load in or record wavetables, the oscillator frequencies can be quantized and it can store and load presets.

In this video, we used Malekko's Varigate 4+ for sequencing, the TINRS Wobbler & Edgecutter for modulation as well as an Intellijel Planar 2. We also used a Doepfer A-105 SSM VCF and GRP VCA.
