SonicsmithConVertor E1 Preamp and Audio Controlled Oscillator (Cream + Black)


In Stock Available immediately!
  • Free Shipping
  • No Hassle Returns
    No Hassle
  • Warranty
  • Low Price Guarantee'
    Low Prices

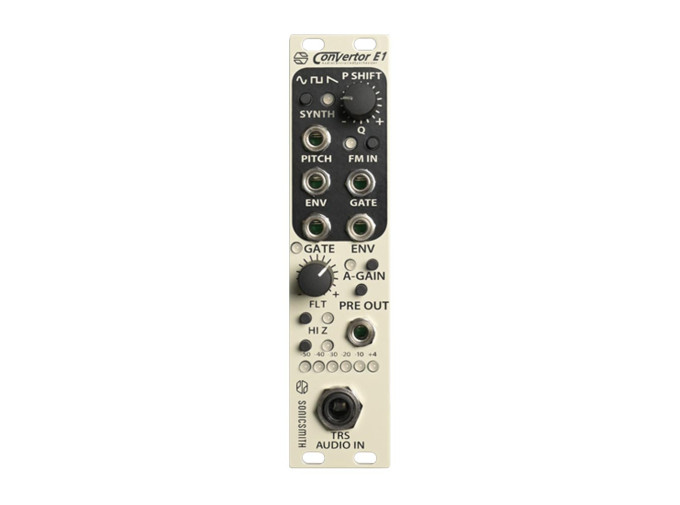

Sonicsmith ConVertor E1

Loaded with Sonicsmith's renowned audio-controlled pitch tracking technology and a wealth of other handy features, ConVertor E1 is a great choice for curious synthesists incorporating outside sound sources into their Eurorack system. Much like their Squaver P1, ConVertor E1 contains an ACO (audio-controlled oscillator), which is a digitally-controlled oscillator whose pitch is informed by incoming signals at the audio input. But rather than closing this off, Sonicsmith have kindly broken out several derived control voltages from the incoming audio, including the calculated pitch as 1V/Oct output, an envelope follower which tracks the dynamics of the source audio, and a gate output for triggering outside sources when the input signal crosses a specific threshold. Of course, there's also a dedicated output for the built-in oscillator, waveform selection, and an FM input which quantizes incoming voltages.

While the pitch tracking capabilities are certainly a highlight of the ConVertor E1, there's a lot more going on than initially meets the eye. The preamp used for external audio input is practically studio quality, offering up to +54dB of gain and offers a handy auto-gain feature. A compressor is used on the CV envelope follower output, offering true rounded dynamics without requiring the user to set a threshold. If you decide to add the MIDVertor E1 or purchase both as part of the E1 Duo Pack, ConVertor can also transmit its pitch conversion data as MIDI to any instrument in your studio. Simply put, ConVertor E1 is a unique offering that's sure to spark countless ideas from sound explorers everywhere.

ConVertor E1 Features

  • Preamp module with pitch tracking analysis and internal oscillator
  • +54dB of preamp gain with manual and auto control
  • Outputs pitch, envelope, and gate from incoming audio
  • Internal oscillator follows incoming audio pitch, or can run entirely off of external CV
  • ACO (audio-controlled oscillator) mode, or VCO mode with decoupled signal analysis and oscillator sections
  • Waveforms: sine, triangle, square, sawtooth, PWM pulse, and 50/50 saw-square blend
  • PItch quantization on FM CV input
  • Connects to MIDVertor E1 for MIDI connectivity and total remote control
  • Eurorack module
  • Width: 6hp
  • Depth: 43mm
  • Current draw: 150mA @ +12V, 0mA @ -12V
