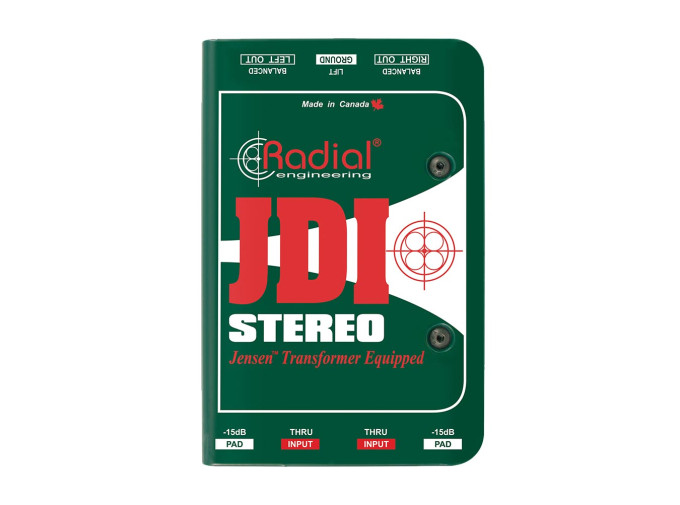

Radial Engineering JDI Stereo

Dependable and built to last, Radial Engineering's JDI Stereo is a passive direct box equipped with Jensen transformers and a number of features to deliver optimum sound and performance. Along with the transformer balanced outputs, both channels feature Thru outputs and -15dB pad switches, plus a Ground Lift for the whole unit to eliminate pesky hum from ground loops. From its premium component choices, quality connectors, and 14-gauge steel enclosure, you can count on the JDI Stereo for years.

JDI Stereo Features

  • Passive stereo DI Box
  • Contains premium Jensen transformers
  • Unbalanced instrument inputs
  • Thru outputs for connection to amps
  • Balanced XLR outputs
  • -15dB Pad switches
  • Global Ground Lift switch
  • Input Connections: 2x unbalanced 1/4"
  • Output Connections: 2x 1/4" thru, 2x XLR
  • Frequency Response: 20Hz-20kHz
  • Dynamic Range: 135dB
  • Total Harmonic Distortion (THD): 0.05 from 20Hz - 20kHz @ -10dB
  • Phase Deviation: 0.3 degrees @ 100Hz, 3 degrees @ 20Hz
  • Input Impedance: 140kOhms, unbalanced
  • Output Impedance: 150 Ohms, balanced
  • Maximum Input Level: +21dB @ 20Hz - 20kHz
  • Dimensions: 5" x 3.3" x 1.8" / 127 x 84.1 x 45.5mm
  • Weight: 1.55 lbs / 703g
  • Power: passive, no power necessary
