Low-Gain Electronics UTL-1E

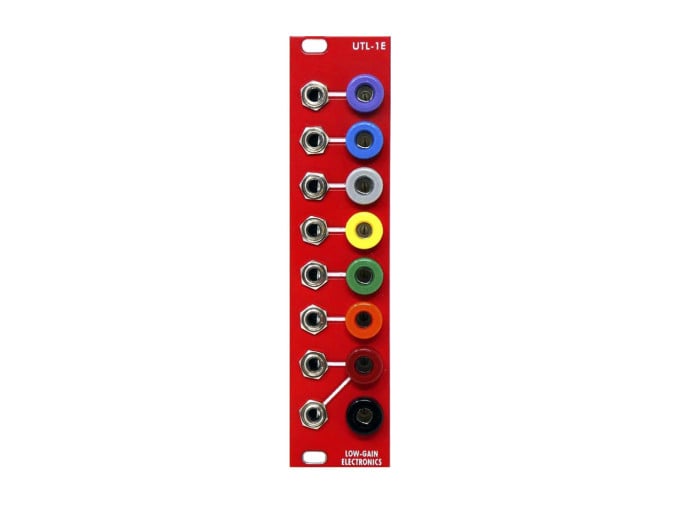

The Low-Gain Electronics UTL-1E is a Eurorack cable format jumbler perfect for integrating Eurorack systems with Serge, Buchla, Ciat Lonbarde, Bugbrand, and other synth formats that use banana jacks for CV. UTL-1E allows for 6 channels of simple cable format conversion, with an added 2-channel logic gate OR combiner attached to the seventh banana jack. A banana ground is accessible on the front panel as well, making it easy to ground the two connected systems together for reliable CV translation. UTL-1E is the perfect thing for bringing all synths together, despite their format.
Note: this unit is completely passive and does not perform any level scaling or offsetting—so bear this in mind before sending bipolar voltages to your 200e system, or before sending 15V pulses from your vintage Buchla into a Eurorack system.
- Format jumbler for modular synthesizers
- Eurorack-format module
- Seven-channel, bidirectional 3.5mm–Banana jack conversion
- Channel 7 offers 2-channel Logic Gate OR combiner
- Ground jack accessible on front panel
- Eurorack module
- Width: 6hp
- Depth: 25mm
- Current draw: Passive
