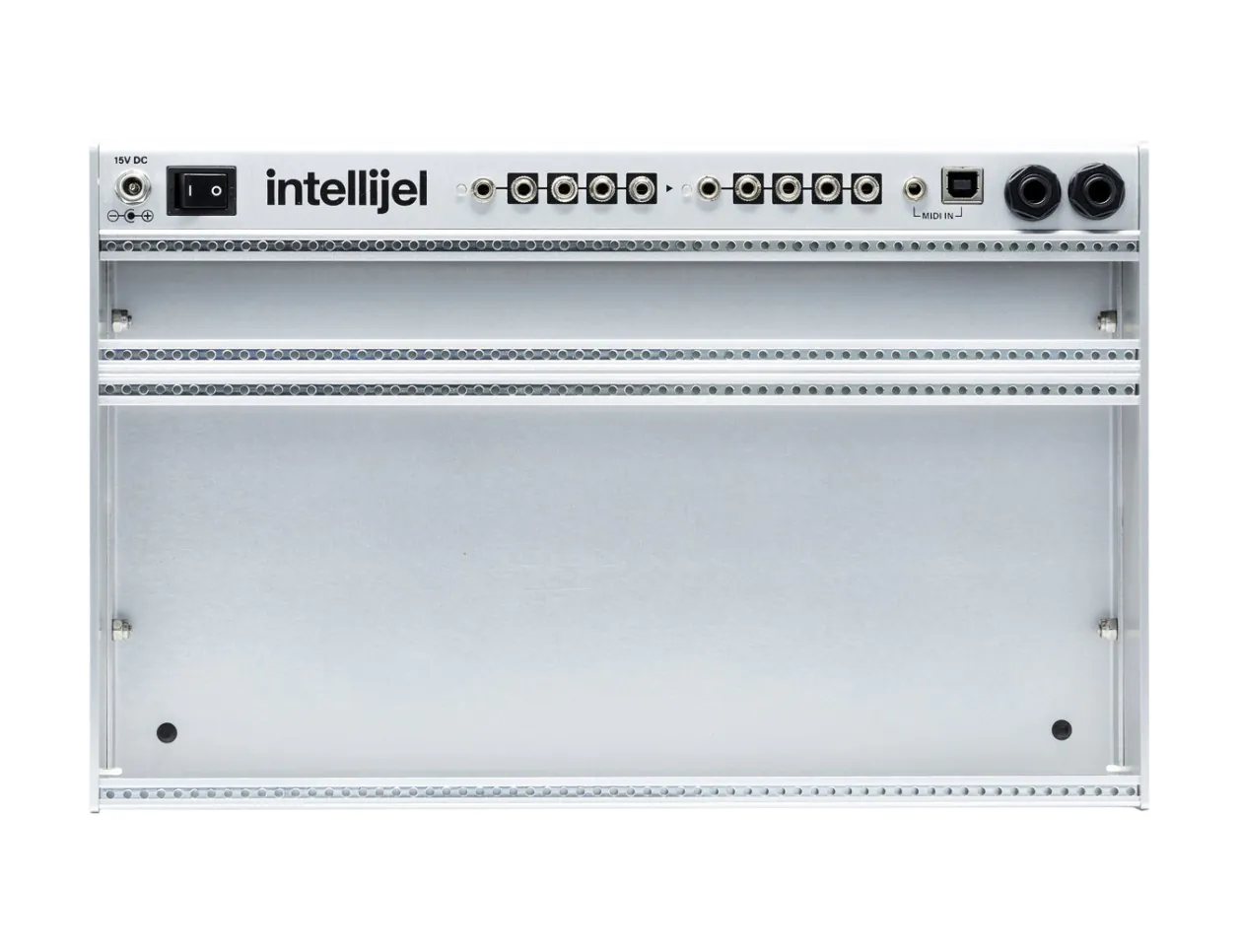

Intellijel Designs 4U Palette Case

Intellijel's 4U Palette series cases pack a ton of functionality into a tiny footprint, providing a comfortable way to create powerful Eurorack systems that will easily fit in a backpack or on a desktop. With 62hp or 104hp each of 3U and 1U module space and a set of built-in utilities, the Palette is a perfect way to build a small, portable modular synthesizer.

All Palette cases include integrated buffered mults, 1/4" audio jacks, 3.5mm TRS MIDI input jack, and a built-in power supply, where the 104hp version adds a TRS MIDI output and two summing mixers. A Meanwell external PSU and 3.5mm–DIN MIDI adapter are included, but Palette owners may desire to add modules like Intellijel's MIDI 1U and Stereo Line Out 1U modules to get the most out of these other integrated niceties.

4U Palette Case Features

  • Desktop case for 3U and Intellijel-format 1U Eurorack modules
  • Built-in buffered multiples—two on Palette 62 and three on Palette 104
  • Integrated TRS MIDI and USB ports
  • Includes Meanwell power brick and MIDI adapter cable
  • Dimensions: 324.4mm x 204.4mm x 51.3mm / 12.77" x 8.05" x 2.02" (62hp), 537.7mm x 204.4mm x 51.3mm / 21.17" x 8.05" x 2.02" (104hp)
  • Available Power: 1.2A @ +12V, 1.2A @ -12V, 500mA @ +5V (62hp), 1.5A @ +12V, 1.5A @ -12V, 500mA @ +5V (104hp)
  • Maximum module depth: 45.5mm (37.4mm at each 1HP edge)
SignalRelated Articles62HP: Ultimate Guitar Effects ProcessorUsing a Modular Synthesizer for Guitar EffectsBuilding a Modular Synth on a BudgetFirst Steps Toward an Affordable Eurorack SystemBuying Guide: Eurorack Modular Synthesizer CasesChoosing the Modular Case That's Right for YouEurorack Modular Case BasicsEssential Tips for Picking a Eurorack CaseIntellijel Cascadia Semi-Modular Synth OverviewPlus! Danjel van Tijn Discusses Long-Awaited Standalone Synthesizer
Product Demo Videos
Installing Modules in the Intellijel Palette Case
The compact size and slim form factor of the 62HP Intellijel Palette case can make it a little tricky to access the board to connect your modules. This video demonstrates a few tips to make things easier.
