Intellijel DesignsTriplatt Mixer + Voltage Utility

Item#
N13-00103
6hp
$109.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

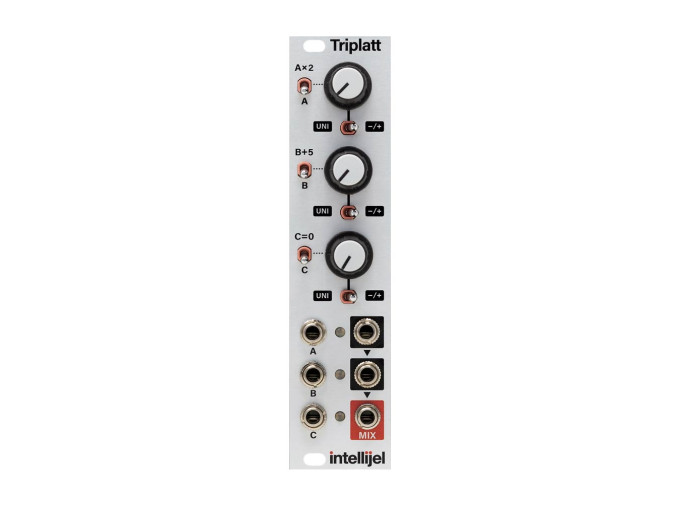

Intellijel Designs Triplatt

The Intellijel Triplatt is a three-channel voltage processor, capable of a host of utilitarian function from mixing, offset generation, attenuation, inversion, and more. Expanding on the much-loved Triatt, Triplatt takes the next step and adds a wide variety of new features that make everyday Eurorack tasks simpler than ever before.

Triplatt features three independent channels of voltage processing, each with some special tricks up their sleeve. Each channel features switchable unipolar/bipolar operation, allowing them to switch from attenuator to attenuverter behavior in an instant. All channel outputs are normalled to mix downward, allowing for two and three-channel mixing or fully independent operation. And of course, handy level monitor LEDs make it easy to visualize exactly what is happening at each output. By default, a precision 5V offset is present at each channel's input, allowing for the creation of continuously variable voltage offsets with a range as wide as -10 to 10V (depending on the channel).

Each channel sports a distinct special function as well. Channel A can be switched into an alternate mode with up to 2x gain, allowing for amplification of incoming audio or CV. Channel B includes a switchable 5V offset which can be added to the channel's output at a moment's notice. Channel C provides a mute switch.

Triplatt is a clever combination of basic utility functions, and works just as well in the audio domain as the CV domain. Use it to mix, scale, invert, offset—countless common functions are all easily achieved in a mere 6hp.

Triplatt Features

  • Three-channel buffered attenuverter and summing mixer
  • Equally suited for use with audio or CV
  • Each channel normalled to mix to the channel below it
  • Switchable unipolar (attenuator) or bipolar (attenuverter) operation per channel
  • Each input normalized to a precision 5V source for creating offset signals
  • Special function for each channel
  • Channel A offers a 2x gain mode for signal boosting
  • Channel B offers +5V switch for easy 5V signal offsets
  • Channel C features dedicated mute switch
  • Eurorack module
  • Width: 6hp
  • Depth: 21mm
  • Current draw: 49mA @ +12V, 25mA @ -12V
SignalRelated ArticlesUsing Control Voltage with Effects PedalsModular Synths + the Hidden World of Expression Pedal ModulationLearning Synthesis: CV Processing
Product Demo Videos
Triplatt Overview
Triplatt is a three-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. It’s a versatile and super handy utility module that will find its way into almost any patch you make!

Each input is normalled to a built-in +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.

Each output is normalled to mix into the output of the channel below, making it possible to do sub mixes in groups of two or three.

In addition, each channel has a “special function” switch to alter its input voltage in a specific way. Channel A has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A. Channel B has a +5V switch, allowing you to add 5V to whatever voltage is sent into Channel B. Channel C has a mute switch, allowing you to completely turn off the signal being sent into Channel C.

Features
Triple Attenuator / Inverter / Attenuverter / Multiplier / Adder / Mixer / DC Voltage Source
Two Modes for each channel (Positive or Bipolar)
Additional “special function” for each channel
Precision 5v source normalling to all three inputs
Dual color led for monitoring each individual output
Skiff / Palette friendly
