Instruolìon 6 x 6 Pin Matrix Mixer

16hp
$339.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

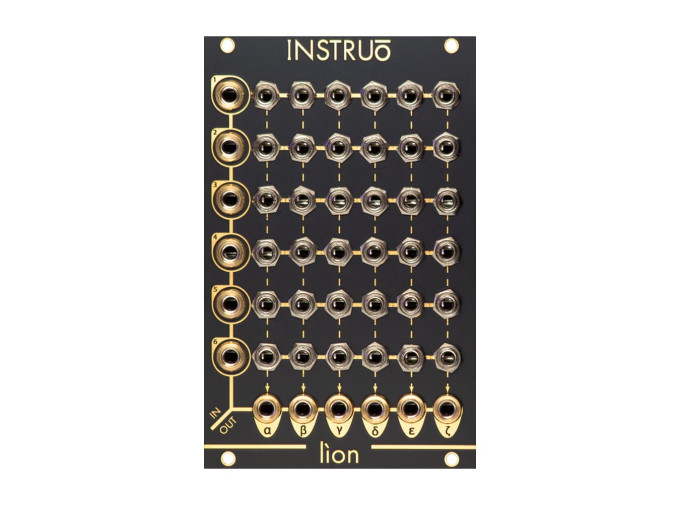

Instruo lìon

Inspired by the iconic pin matrix interfaces on classic 1970's synthesizers such as the EMS Synthi, the Instruo lìon is a 6 x 6 matrix mixer with a pin-style interface. It provides a useful way to quickly reroute your patches using the included pins. These make connections from the input channels, arranged vertically, to the outputs, arranged horizontally. In addition to making connections with the pins, the two included insert cables let you route the signals out to external destinations with a send and return on one TRS cable. Channels three through six feature cascaded attenuation, letting you change the amplitude of a signal simply by its placement in the column.

A handy utility for keeping your synth organized and signal flow clear, this pin matrix mixer allows you to reroute an entire patch quickly by simply rearranging the order of the pins, without the need for pulling out a mess of cables. If you're looking for a creative new way to interface with your instrument, this could be the perfect thing for you.

lìon Features

  • 6 x 6 matrix mixer
  • Uses pin matrix interface to make connections
  • Supports send and return insert effects
  • Cascaded attenuation of channels three through six
  • Includes 10 3.5mm TRS connection pins and two 3.5mm TRS insert cables
  • Eurorack module
  • Width: 16hp
  • Depth: 27mm
  • Current draw: 30 mA @ +12V, 30mA @ -12V
