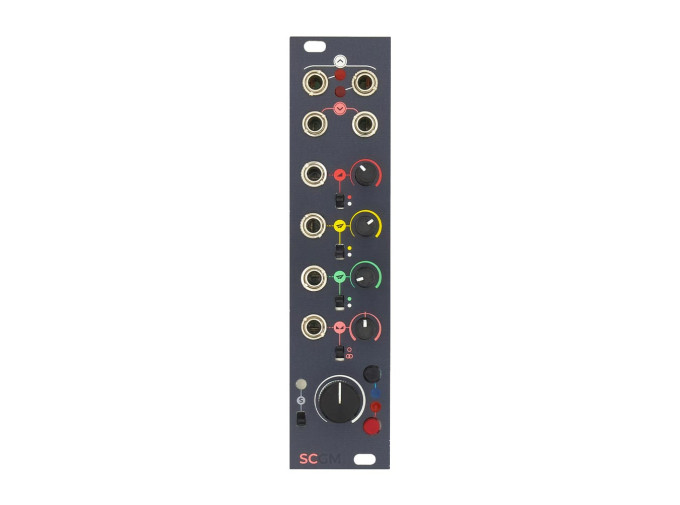

Frap Tools CGM Stereo Channel
Pushing the CGM series to new heights, the Frap Tools Stereo Channel is a single module that can support mono or stereo sources, along with a number of crucial mixing features. To get the most out of this module, it's recommended to connect it with a Group module, which can support up to eight connected channels, and affords the use of the FX sends on each Channel.
The module governs audio signals via its 3.5mm inputs, and supports any combination of mono and stereo summing. Signals pass through a stereo VCA, with capabilities for external voltage-control and saturation at extreme settings. From there, two FX sends with pre/post fader switches support a myriad of routing options, and are bussed along to the connected Group module.
Additionally, the module features a Pan control with offset pot and CV. A switch allows this section to function either as a stereo panner or crossfader between the two inputs, which can be super useful in systems packed with a lot of voices. There’s also latching buttons that afford Mute, Solo, and Pre-Fader Listening, all of which govern the input signal before routing it to a connected Group module.
CGM Stereo Channel Features
- Channels section of CGM Creative Mixer
- 8 Channels modules can be connected to a single Group module
- Manages mono signals via 3.5mm mono input jack
- Main stereo VCA with CV in and attenuator
- Direct output post main VCA
- Two parallel sends with mono VCA for each send
- Pan control with offset CV and knob
- Eurorack Module
- Width: 6HP
- Depth: 43mm
- Current Draw: 70mA @ +12V, 45mA @ -12V
Thanks to its advanced I/O configuration, it can work as stereo-to-stereo, mono-to-mono, mono-to-stereo, and stereo-to-mono.
