Frap Tools333 Mixer + Distributor
Item#
N13-6841
6hp
$99.00
-
Free
Shipping -
No Hassle
Returns -
Extended
Warranty -
Low Prices
Guaranteed
YOU MIGHT ALSO LIKE

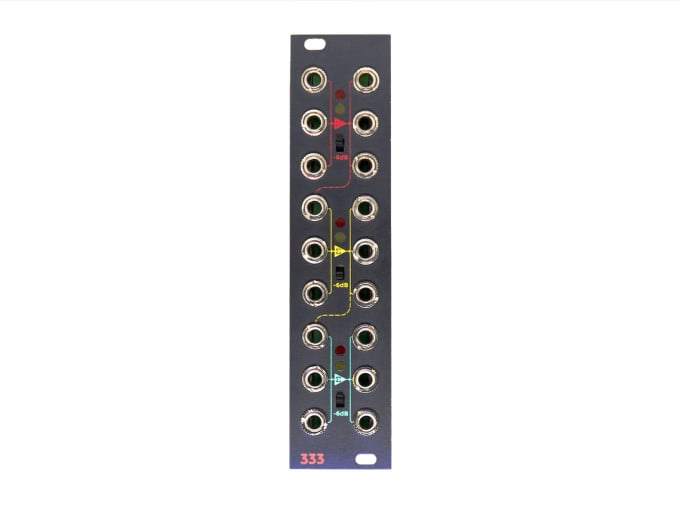

Frap Tools 333
The Frap Tools 333 consists of three separate groups of three summing mixers. Each of the module’s inputs and outputs are DC coupled, meaning they are compatible with both CV and audio rate signals. Additionally, 333 features buffered outputs that make it an ideal means of distributing quantized CV while maintaining the integrity of the signal.
Additionally, the module contains a -6dB pad switch on each channel so that users can appropriately tame the volume of excessive input signals. Since the 333’s bottom and top sections are normalled together, the module can also operate as a 1:9 multiple.
333 Features
- 3 x 3 mixers/distributors
- DC coupled, works with CV
- Buffered, works with quantized voltages
- 6dB attenuator switch
- 1 to 9 buffered mult
- Eurorack Module
- Width: 6HP
- Depth: 38mm
- Current Draw: 48mA@+12V, 48mA@-12V
Product Demo Videos
333 ProAudio Sum & Distribution - Overview
Overview of the 333 sum and distribution module: derived directly from the CGM creative mixer series, it is perfect for summing and distributing any kind of audio and well as any CV, gate or clock. Thanks to its high quality it is also perfect to sum together quantized voltages, like semitones and octaves created by the SAPÈL.
