Expert Sleepers USAMO

Polyphonic MIDI enthusiasts rejoice! The Expert Sleepers USAMO MIDI Output Interface takes an audio signal and uses it to generate stable MIDI messages at its output.

The audio signal itself is generated by the USAMO plug-in, which can be loaded as a VST inside any DAW. MIDI is sent to the plug-in via the DAW, then subsequently translated to audio to be sent to the hardware for conversion back to MIDI.

The USAMO can generate MIDI clock signals, song position pointers, and more.

USAMO Features

  • Universal Sample-Accurate MIDI Output Interface for Digital Audio Workstations
  • Jitter-Free MIDI Output and Operation
  • MIDI Signal generated from DAW Audio
  • USAMO Software Plug-In runs as virtual instrument — AU/VST/AAX (Mac & Windows)
  • MIDI Note, Controller DATA, MIDI Clock, Song Position Pointer, Sysex and more MIDI Implementation Capable
  • Sample-Accurately Synced with DAW Audio
  • Uses the same technology previously available from Silent Way and the ESX-8MD module

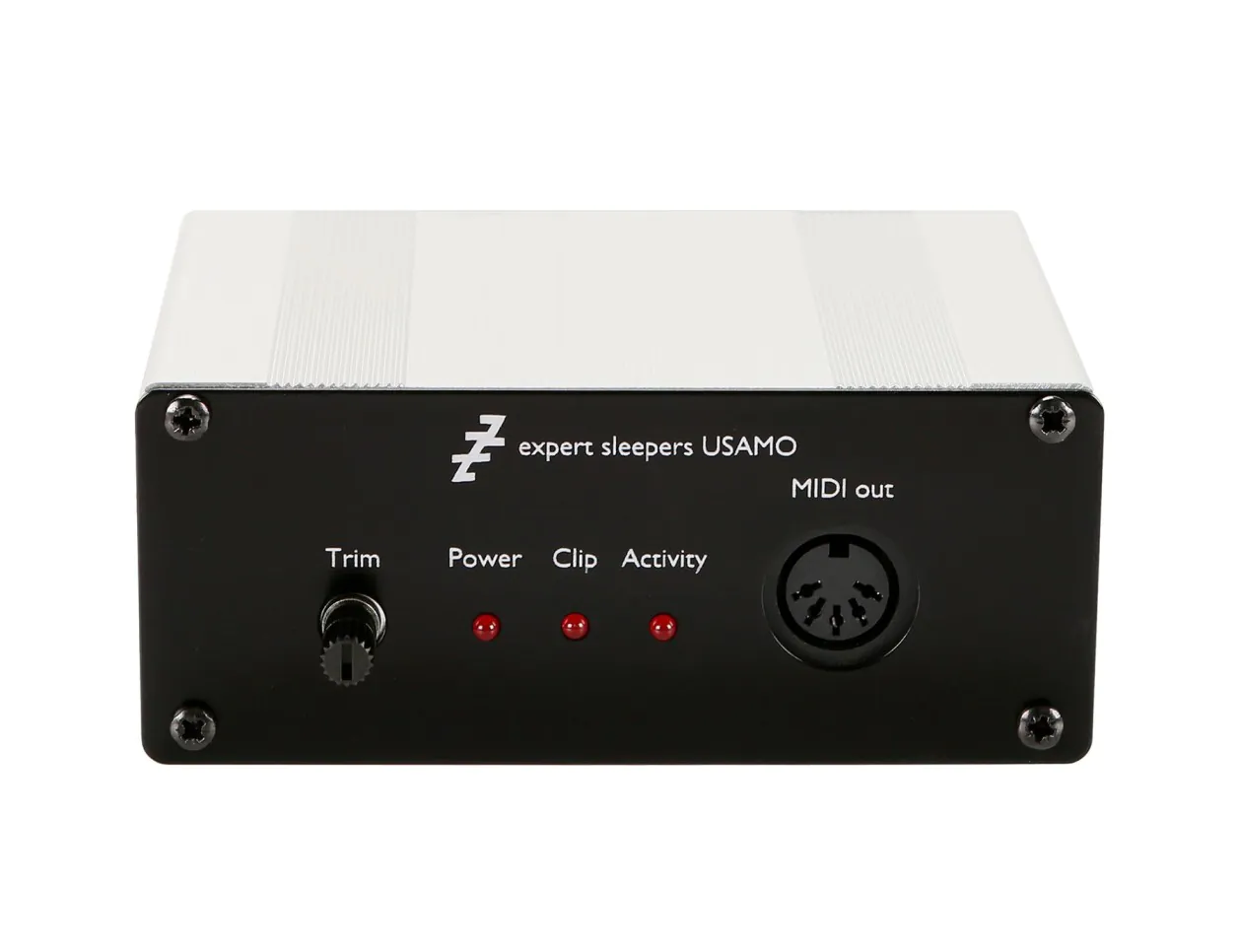

  • Standalone Box
  • Translates Analog Audio Connection to MIDI (as opposed to Digital Audio Connections)
  • Trim Control Pot
  • Power, Clip, & Activity LED Indications
  • MIDI Output: Standard 5 pin DIN MIDI Socket
  • Audio Input at Rear (1/4" audio jack socket, accepts balanced or unbalanced signals)
  • Power Input at Rear (Accepts both polarities of DC 9V)
  • Input: 1/4" audio jack socket, accepts balanced or unbalanced signals
  • Output: standard 5 pin DIN MIDI socket
  • Controls: Trim Pot
  • Indicators: Power, Clip, Activity
  • Power requirements: 9V DC @ 7mA, external PSU (not included)
  • Power connector: 2.1mm barrel socket, positive or negative tip
  • Aluminum box: 108x80x44mm (4.25" x 3.15" x 1.73") (1U high, approximately quarter rack width)
