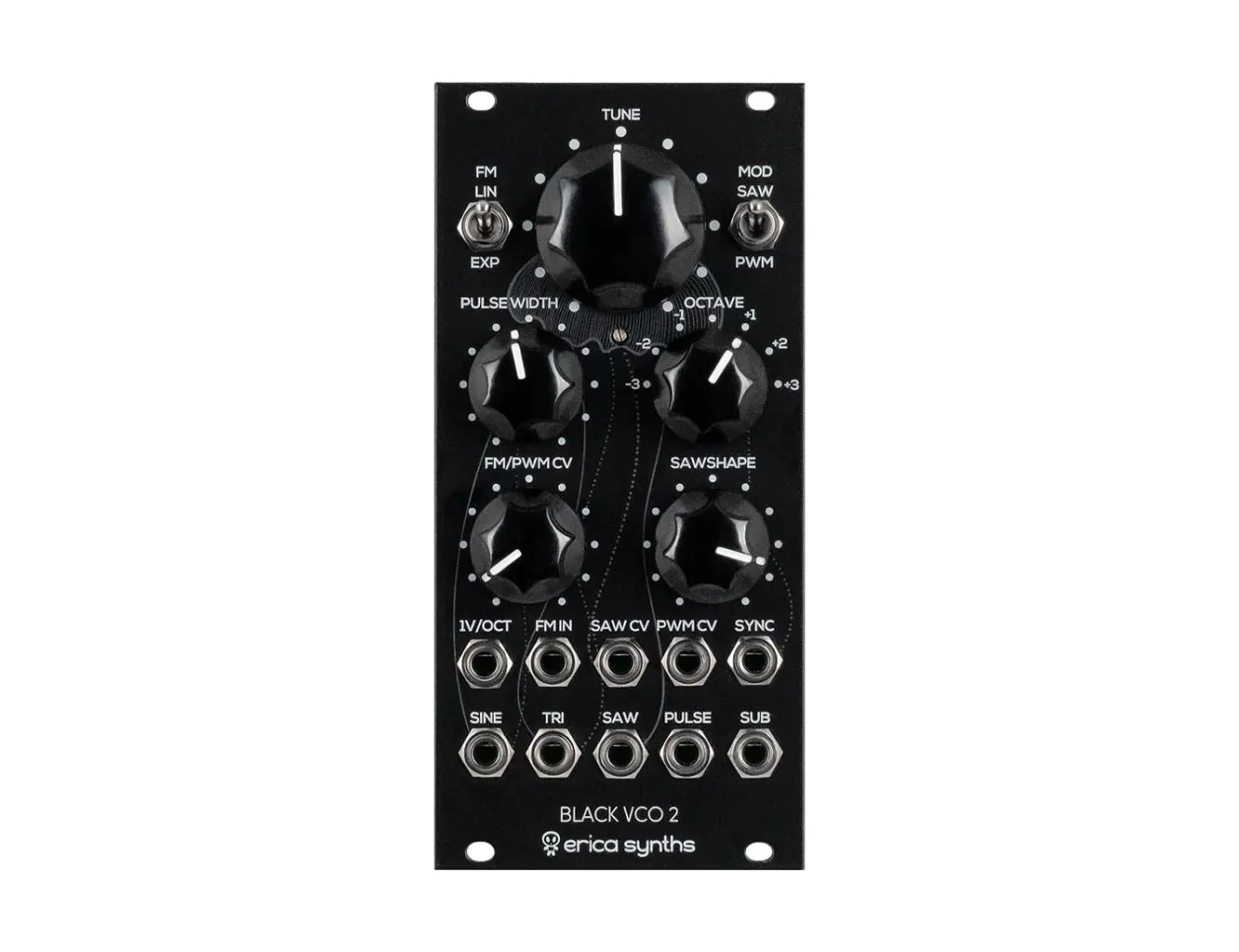

Erica Synths Black VCO2
The Black series VCO2 from Erica Synths is the successor to the original Black VCO, and adds an abundance of awesome new features and an optional expander for even deeper control and modulation. The Black VCO2 is a fully analog Eurorack oscillator with simultaneous sine, saw, triangle and pulse waves, the saw output features a special wave shaping function with an internal LFO, and a second internal LFO controls the mod amount of the pulse-width. The two internal LFO’s scale with the oscillators coarse pitch, and can be bypassed via a switch, or by patching in your own control voltage or manual control. The Black VCO2’s sub-oscillator features a transistor based design that generates a rich, but rounded squarewave for a distinct character unlike most divide-based subs.
With the addition of the Black VCO Expander a new suite of controls becomes available including wave mixing, additional sub oscillator outputs, level control and more!
Black VCO2 Features
- Full analog VCO
- Four simultaneous wave outputs & sub
- Transistor-based sub oscillator circuit
- Optional expander for additional functionality
- Skiff-friendly design
- Saw waveshaper with built-in LFO
- PWM with built-in LFO
- Seven octave range with switch
- Eurorack module
- Width: 12hp
- Depth: Width: 12HP
- Current draw: Module depth: 35mm
- Current draw: Current Draw: 71mA +12V, 62mA -12V (with expander: 102mA +12V, 87mA -12V)

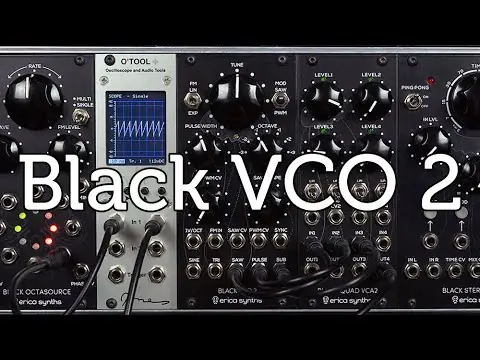

For the JAM part outputs of the VCO are mixed together with Black Quad VCA 2 and sent through Black Multimode VCF and Black Stereo Delay.
