ElectrosmithDaisy patch.Init() Programmable Eurorack Module

Item#
N13-05064
10hp
$199.00

In Stock Available immediately!

  • Free Shipping
    Free
    Shipping
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed
This item is exempt from our risk-free returns policy

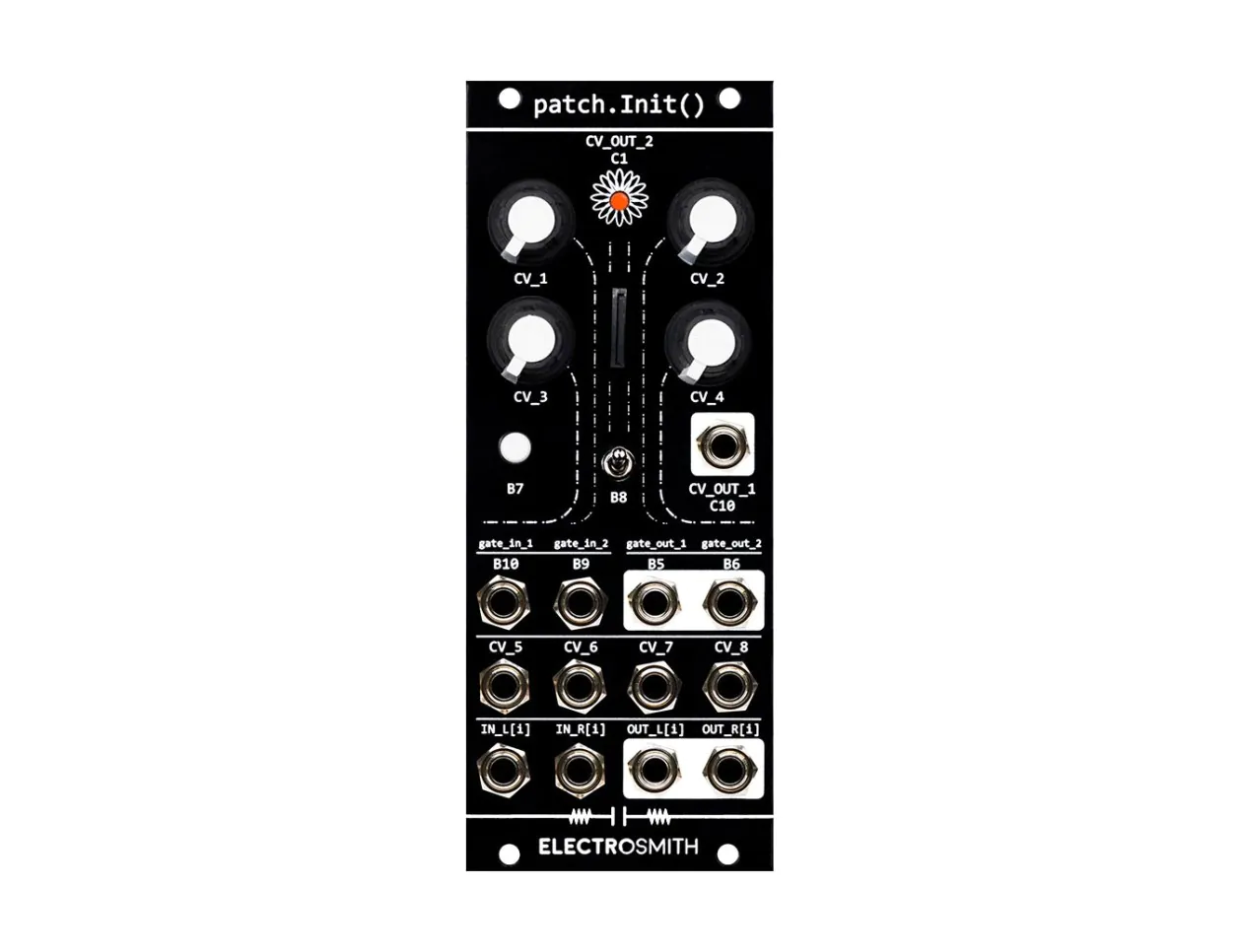

Electrosmith patch.Init()

If you're interested in the Daisy audio programming platform but feel intimidated by designing your own hardware off the bat, the Electrosmith patch.Init() is a bare-bones, plug-and-play option to get you up and running immediately. Loaded with a Daisy Submodule on the rear, this is a module that provides some essential interfacing elements to begin prototyping your ideas—jacks, pots, and more are immediately accessible by your code!

The Daisy platform has exploded in popularity over the past couple of years, being the core behind incredible modules from the likes of Qu-Bit, Noise Engineering, ADDAC, and more. Whether you prefer to work in C++, Max/MSP's Gen~, Pure Data, or other audio programming environments, Daisy likely has a way to support your code platform of choice. The submodule mounted on the back of the patch.Init() module sports an STM32 processor, and 64MB of RAM, which together allow for audio buffers up to 10-minutes in length at 24-bit, 96kHz sample-rate. And whether you're just new to the platform or new to programming as a whole, Electrosmith supports an ever-growing library of tutorials, example code, and much more to help you bring your ideas to life. Plant the seeds of an enriching new hobby, and get coding with the Daisy patch.Init() module from Electrosmith.

patch.Init() Features

  • Modular interface for Daisy audio programming platform
  • Carrier Eurorack module for Daisy Patch Submodule
  • Four potentiometers
  • Four CV inputs
  • One CV output
  • Stereo audio I/O
  • Two gate inputs and two gate outputs
  • LED, push button, and toggle switch
  • STM32 H7 processor with Cirrus audio codec
  • Documentation and examples available at the Electrosmith GitHub page
  • Eurorack module
  • Width: 10hp
  • Depth: 31mm
  • Current draw: Up to 90mA @ +12V, 5mA @ -12V
