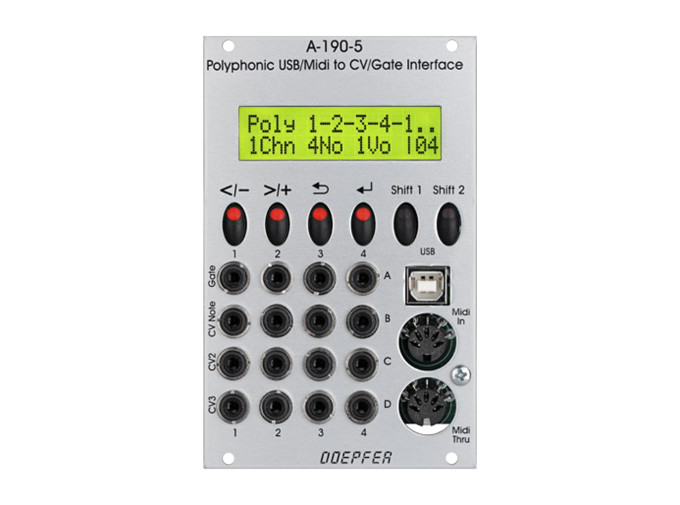

Doepfer A-190-5

Doepfer's Module A-190-5 is a MIDI/USB to CV and Gate interface with a total of four voices. Each voice features pitch voltage, a gate output, and two assignable control voltages. The latter two inputs can be configured for control via MIDI velocity, modulation, volume, aftertouch, and pitch bend. Additionally, the module can be configured in four different modes: four-voice monophonic, four-voice polyphonic, two-voice polyphonic, and unison. The selected mode is visible via the module's display screen, which indicates the mode and selected parameters for convenient and expedited editing.

A-190-5 Features

  • Four channels
  • Each channel features pitch voltage out, gate out, and two assignable cv outs
  • LCD enables quick and easy editing of all crucial parameters
  • Four modes of operation: four-voice monophonic, four-voice polyphonic, two-voice polyphonic, and unison
  • Width: 16HP
  • Depth: 55mm
  • Current draw: 120mA @ +12v, 40mA @ -12v
