DoepferA-105-4 Quad Poly SSI VCF

Item#
N13-9754
8hp
$245.00 $205.00
  • Sale
  • SAVE $40
In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

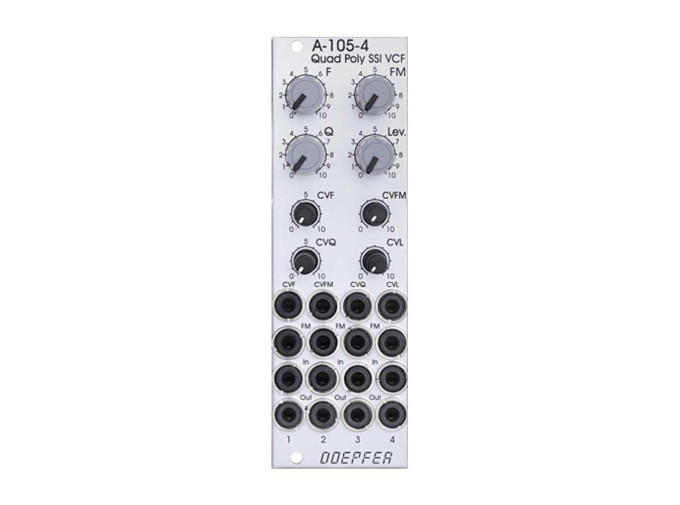

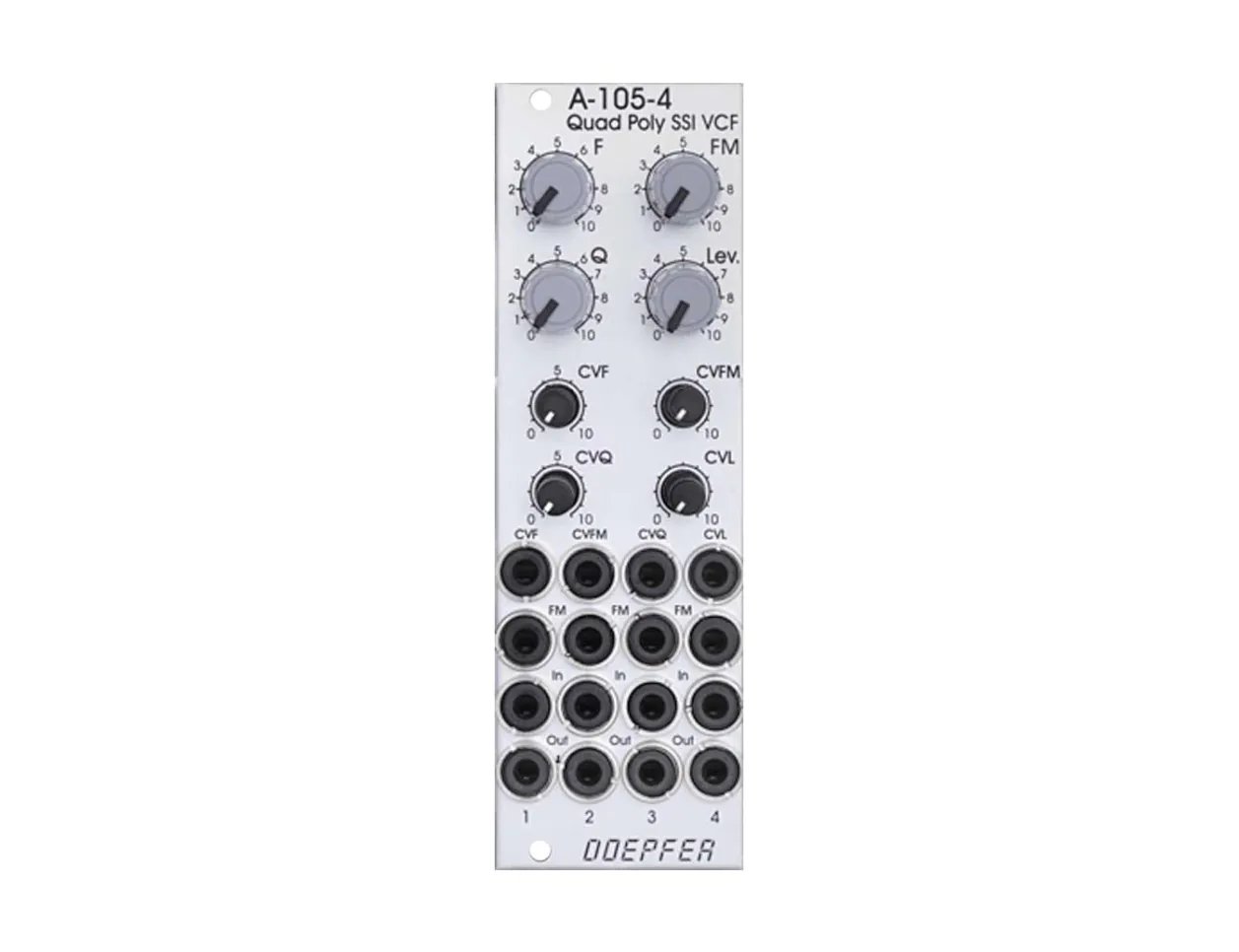

Doepfer A-105-4

The A-105-4 from Doepfer offers four 24 dB/oct low-pass filters in a compact module optimized for polyphonic modular patching. The module's unified CV inputs for cutoff frequency, resonance, and level (with four built-in VCAs) make great-sounding four-voice polyphony within Eurorack easier to achieve than ever before.

A-105-4 Features

  • Quad SSI2144-based analog filter
  • One audio input and output per filter
  • FM input with attenuator for each filter
  • Consolidated Frequency, Q, and Level controls with CV input
  • CV input attenuators for each parameter
  • Eurorack module
  • Width: 8hp
  • Depth: 50mm
  • Current draw: 70mA @ +12v, 70mA @ -12v
