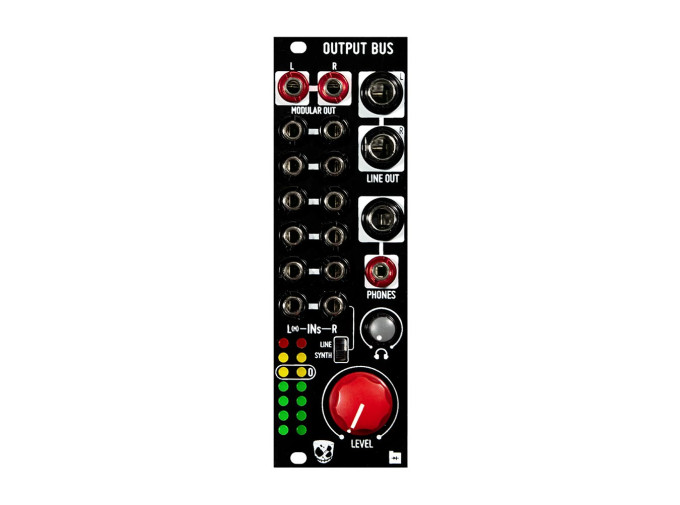

DivKid Output Bus
The Output Bus by DivKid brings pro-audio, studio summing style mixing to the end of your Eurorack signal chain. Featuring six stereo inputs, the Output Bus is the ultimate final step for sending your Eurorack audio out into the world, whether for recording or live performance. The sixth channel is switchable between line and modular level, making it easy to bring in drum machines and other line level gear into the Output Bus and have them play nice with your modular signals.
The main output features a soft-clipping circuit for supreme analog coloration. Headphone monitoring and an LED VU meter make it easy to check in on your output signal even when the master out is muted. Perfect for summing the output of multiple submixers, setting up return channels for effects, or simply getting audio out of your Eurorack in a variety of connector and gain arrangements, the Output Bus is a solid choice for any larger rack needing studio-grade output mixing.
Output Bus Features
- Six-channel Eurorack stereo summing mixer
- Soft clip limiting on main output
- Multiple output types including modular level 3.5mm, 1/4" line outs, and 3.5mm / 1/4" TRS headphone output
- Independent headphone output level control
- Sixth channel switchable between line and synth level for getting line level signals into your mix
- LED VU meter for level visualization
- Eurorack module
- Width: 8hp
- Depth: 30mm
- Current draw: 70mA @ +12V, 68mA @ -12V
