ALM Busy CircuitsBeast's Chalkboard Octave Switch
Item#
N13-2413
6hp
$139.99
-
Free
Shipping - No Hassle
Returns - Extended
Warranty - Low Prices
Guaranteed
FREQUENTLY BOUGHT TOGETHER
- ALM Busy Circuits O/A/x2 Dual Offset Attenuverter 4hp$100.00Out of Stock Reserve your order today!
-
-
-

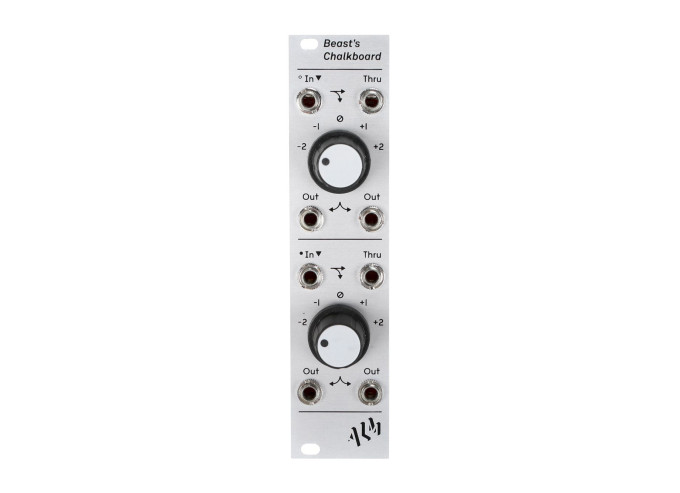

ALM Busy Circuits Beast's Chalkboard
‘Beast’s Chalkboard’ is dual channel stepped voltage source and adder for your Eurorack modular synthesizer system. It primarily is intended as a dual octave switcher for VCO’s but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution and VCO calibration.
Beast's Chalkboard Features
- Dual channel voltage adder and source with 1V stepped range of -2 to +2 volts (i.e 5 Octaves)
- Two Buffered outputs and through output per channel
- Top input normalized to bottom. Allows input to be varied across both channel outputs
- Bottom octave switcher can be chained to top extending range to 9 octaves
- Also functions as 1->6 or dual 1->3 buffered mult
- Skiff friendly
- Designed and built in England
- Eurorack Module
- 6 HP Width
- 22mm Depth (including power header)
- Supply: +/-12V (Reverse voltage & polyfuse protection)
- Current Draw: ~30ma
- Offset Error: +/- 10mV
Product Demo Videos
Beast's Chalkboard - Basics - ALM002
Beast’s Chalkboard is dual channel stepped voltage source and adder for your eurorack modular synthesizer system.
It primarily is intended as a dual octave switcher for VCO’s but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution, state changes, and VCO calibration.
It primarily is intended as a dual octave switcher for VCO’s but has many other uses including sequence transposition, FM ratio creation, buffered CV distribution, state changes, and VCO calibration.
