ZoomLiveTrak L-20 Mixer / Recorder


Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
  • No Hassle Returns
    No Hassle
  • Warranty
  • Low Price Guarantee'
    Low Prices

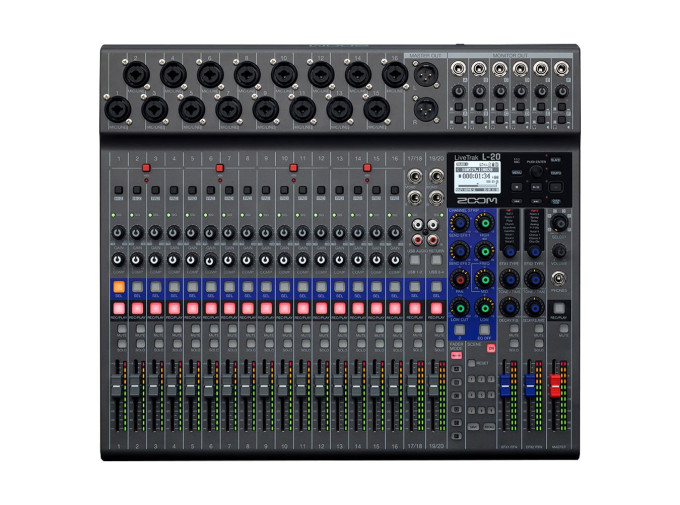

Zoom LiveTrak L-20

The Zoom LiveTrak L-20 is a 20-channel mixer and recording interface that brings mixing, mastering, and recording together in an easy to use interface. Add effects to individual channels, solo and mute tracks, and take advantage of the six custom monitor mixes.

LiveTrak L-20 provides 20 discrete audio channels, 16 of which are combo XLR/TRS inputs, as well as two channels of stereo inputs on TRS and RCA. The inputs are -128dBU EIN with +60dB of maximum input gain. Record 22 tracks directly to an SD card at resolutions up to 24-bit/96kHz. Or conversely, record directly into your computer with the USB connectivity.

The 16 mono channels each have a one-knob compressor to allow for easy tweaks of their dynamics. Channels one and two accept Hi-Z inputs, useful for mixing guitars. Other mono channels feature a 26dB pad. A three-band parametric EQ is available per channel. Any channel can be sent to the EQ using the select button and apply the EQ with the channel strip. Channels can also be sent to one of two EFX buses that include 20 built-in effects.

The primary outputs are a stereo pair of XLR outputs. Additionally, there are six custom monitor mixes, plus one more for the engineer that allows for monitoring of any of the submixes or the main mix itself. The LCD screen provides a clear and intuitive menu for creating projects, recalling previous settings, and setting up recording parameters. Up to nine different scenes can be saved including fader settings, EQ settings, pan, mute, and more. The companion L-20 Control app allows you to interface the L-20 with your iOS device. This brings levels, EQ, FX sends, and more right to your fingertips and mobile device. The LiveTrak L-20 covers all your bases, providing high quality mixing, powerful DSP effects, and the ability to record up to 22 tracks directly to an SD card or to your computer.

LiveTrak L-20 Features

  • Mixer and recording interface
  • 20 discrete channels, 16 mono and two stereo
  • 22-track simultaneous recording on SD or USB
  • Two FX buses and EQ
  • Six custom monitor outputs
  • One knob compressor on mono channels
  • Companion iOS app
  • Built-in slate mic
  • 48V phantom power
  • Mute and solo buttons
  • Save up to 9 scenes
  • Inputs: 16x XLR-1/4" combo, 4x 1/4" line, 2x 1/4" Hi-Z
  • Outputs: 2x XLR master, 6x 1/4" monitor
  • Max resolution: 24-bit @ 96kHz
  • USB: 1x Type A, 1x Type B
  • Digital storage: SDHC/SDXC
  • Dimensions: 3.25 x 15.3 x 17.5"
  • Power: 12VDC 2A supply (included)
