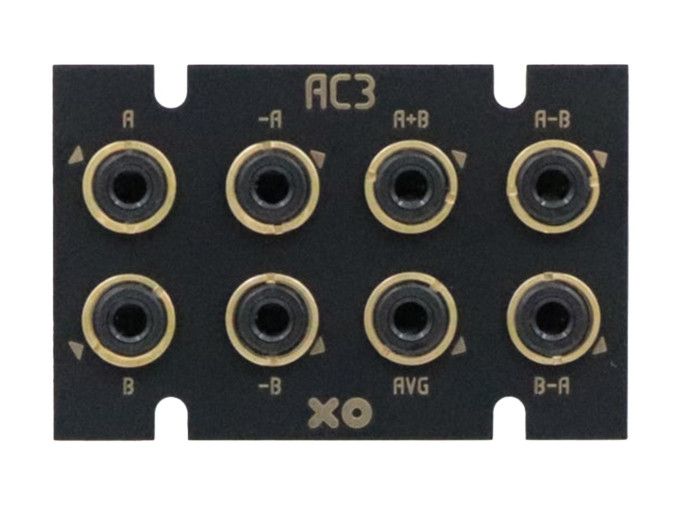

Xodes AC3

AC3 from Xodes is three different types of analog computation with several different outputs for processing audio and CV. COmpatible with both Intellijel and Pulp Logic 1U rack space, the AC3 can take up to two signals and invert either, sum them, find their average, or even find two differences between them. Although these are great for creating interesting filter types, new modulation sources, or even getting some weird effects going, utilizing just one input source can achieve buffered multiples, dual inverters, and even a voltage divider by 2. Add complexity from a variety of simple computations with Xodes' AC3.

AC3 Features

  • Triple analog computations
  • Patch programmable
  • Accepts one or two inputs
  • Two inverted outputs, two inverse subtracted outputs
  • One summed output, one averaged output
  • One input makes these outputs dual inverters, dual buffered mult, and even a voltage divider by two
  • Open screw slots ensure compatibility with both Intellijel and Pulp Logic 1U formats
  • Eurorack module
  • Width: 12hp
  • Depth: 35mm
  • Current draw: 30mA @ +12V, 30mA @ -12V
