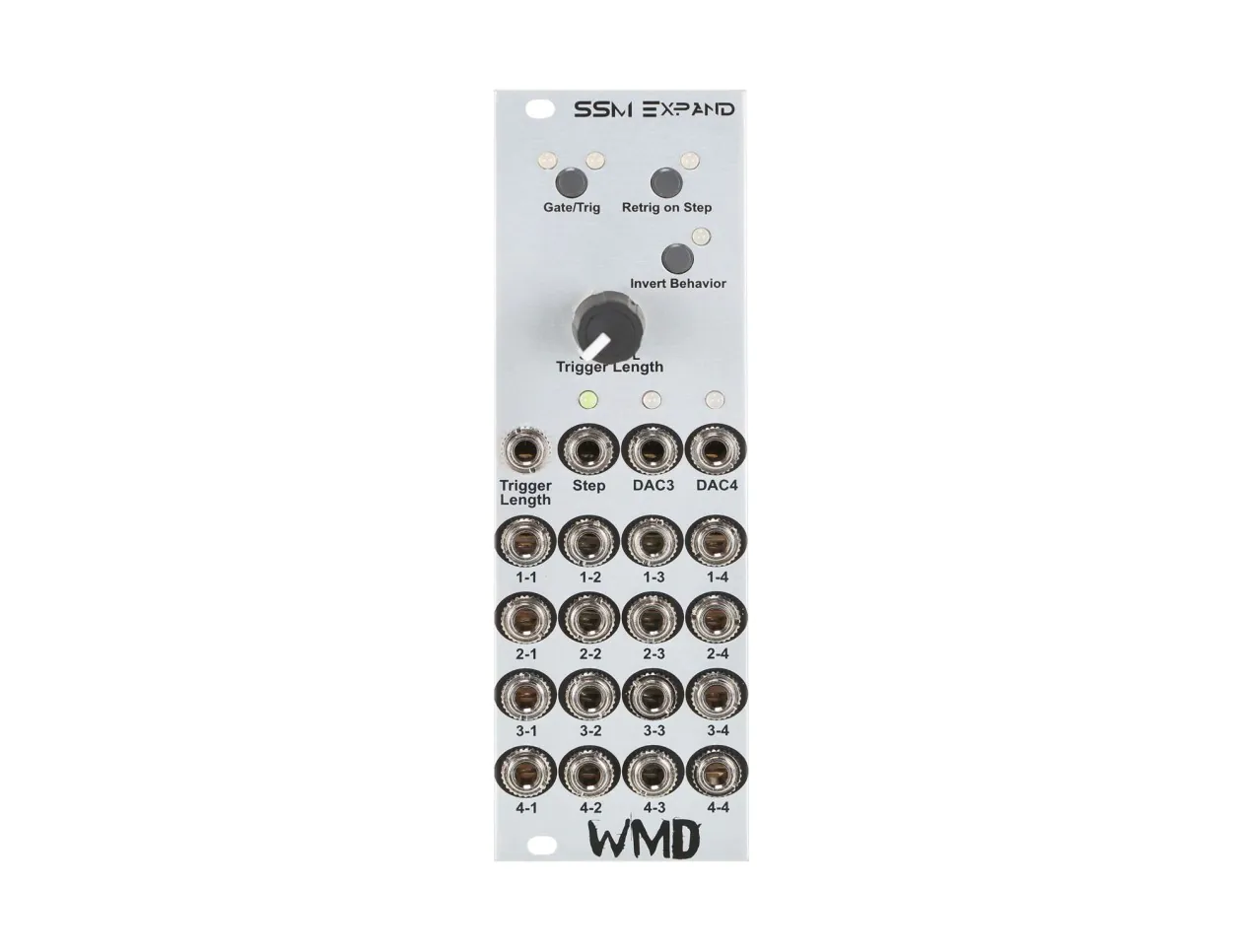

The WMD Sequential Switch Matrix Expander does exactly what is advertised: expands the capabilities of the Sequential Switch Matrix module. The module enables a Gate/Trig function, with the Gate function providing dedicated 10V outs for each routing button, and the Trigger function sending synchronized triggers whenever a step happens.
Additionally, the module features adjustable trigger length (via CV or a dedicated knob), retrig-on-step functionality, and invert behavior.
Sequential Switch Matrix Expander Features
Gate/Trig provide 10V outputs for each routing button and mirrors the routing shown by the SSM LEDs
Adjustable trigger output length
Gates and triggers can retrigger when step is changed
Invert Behavior allows creation of gates when stage is off rather than on
DAC3/4 produce a weighted 4 bit voltage between 0 and 5 volts
Step outputs a trigger for each step, reset or CV change
