Wes AudiongBusComp Analog Bus Compressor with Digital Recall

Item#
N13-05759
$2,999.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

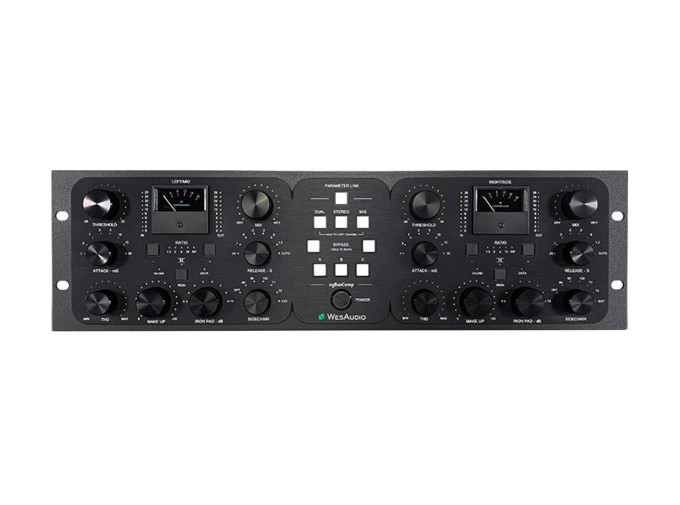

Wes Audio ngBusComp

Get the pure sound of analog compression with the convenience of digital recall using Wes Audio's ngBusComp compressor. Based on the legendary Studio Bus compressor that is heard on countless recordings and beloved for its ability to glue everything together, the ngBusComp uses a four THAT 2181 VCAs in the signal chain and one in the sidechain. This gives you a true analog VCA character and sound. While the hardware is analog, you can use the companion plugin to connect to the device via USB or ethernet to instantly recall your settings, freeing you from drawing knob recall positions or taking meticulous notes. In addition to that, you can automate the parameters or record your knob twiddling in your session.

Link or unlink your channels for stereo or dual mono operation, as well as mid-side mode. The output has the option to be either electronically balanced or transformer balanced, and with the Carnhill transformers in IRON mode, you can drive them for a beautiful break-up. On the output, a PAD passive attenuator can be engaged in stepped in 1dB increments to 15dB. Wes Audio's ngBusComp strikes the perfect balance between analog and digital, at home in both worlds as well as in any studio.

ngBusComp Features

  • 100% analog device with +26dBu of headroom
  • 5 Ratio settings: 1.5:1, 2:1, 4:1, 10:1, and INF (crash) mode
  • Dual mono and stereo compression
  • Mid-side mode
  • Two selectable output stages
  • IRON PAD – passive attenuator enabled in IRON mode
  • Flexible DAW/Live plug-in control for instant recall
  • Controllable through standalone WesAudio application
  • 5 Touch sensitive encoders per each channel allow to record automation in DAW
  • Mix knob for parallel compression
  • Detailed metering for both channels
  • Proprietary THD with precise variable control
  • Side chain filters
  • Rack Size: 3U
  • THD+N < 0.03% (1kHz,0dBu): at 0dBu < 0.006%
  • Frequency response: 0-300kHz (-3dB)
  • Input impedance: >10kohm
  • Output impedance: < 50ohm
  • Crosstalk: > 90dB
  • Max input level: + 26dBu
  • Max output level: + 26dBu
  • Dynamic range: > 120dB
  • Attack: 0.1, 0.3, 1,3, 10, 30 (ms)
  • Release: 0.1, 0.3, 0.6, 0.9, 1.2, Auto (s)
  • Ratio: 1.5, 2, 4, 10, INF
  • Sidechain Filter: 60, 90, 150, T1, T2
  • THD: 0% to 8%
