WavefonixPreamp (PA) - Standard Edition

Item#
N13-05331
5hp
No Longer Available Contact us for a recommendation.

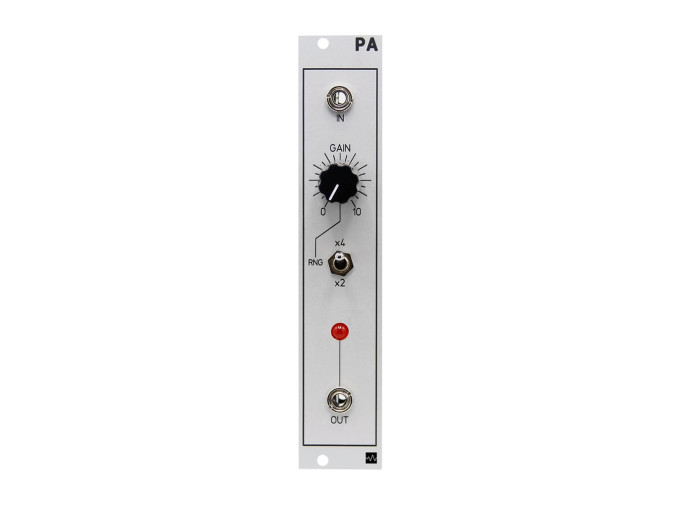

Wavefonix Preamp

The Preamp from Wavefonix is a simple yet versatile preamplification module for making sure all your modular levels are meeting one another with the perfect range. Great for both CV and audio sources, this DC-coupled module can either double or quadruple your incoming signal with a variable gain control for dialing in just the right amount. With clipping LED indication to not push over the +/-10V modular range, the Preamp adds necessary utility for a ranging world of modular levels.

Preamp Features

  • Modular preamplifier
  • Built for amplifying modular-level signals between one another
  • DC-coupled I/O but can still handle audio
  • Gain switch for a double or quadruple range
  • Output with clipping LED indicator
  • Eurorack module
  • Width: 5hp
  • Depth: 25mm
  • Current draw: 30mA @ +12V, 20mA @ -12V
