WavefonixDual VU Meter - Standard Edition

Item#
N13-05329
6hp
$100.00

Backorder Reserve your order today!

Out of Stock

We're awaiting our next batch of this item. Pre-order to reserve your place in line and we'll fulfill your order as soon as we receive our shipment
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

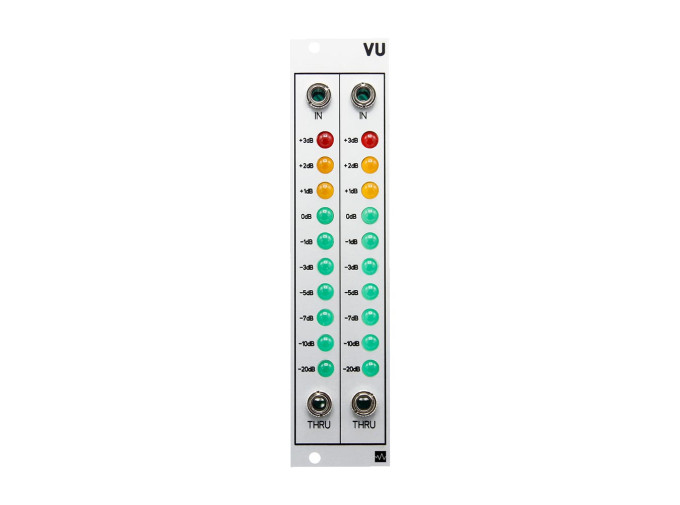

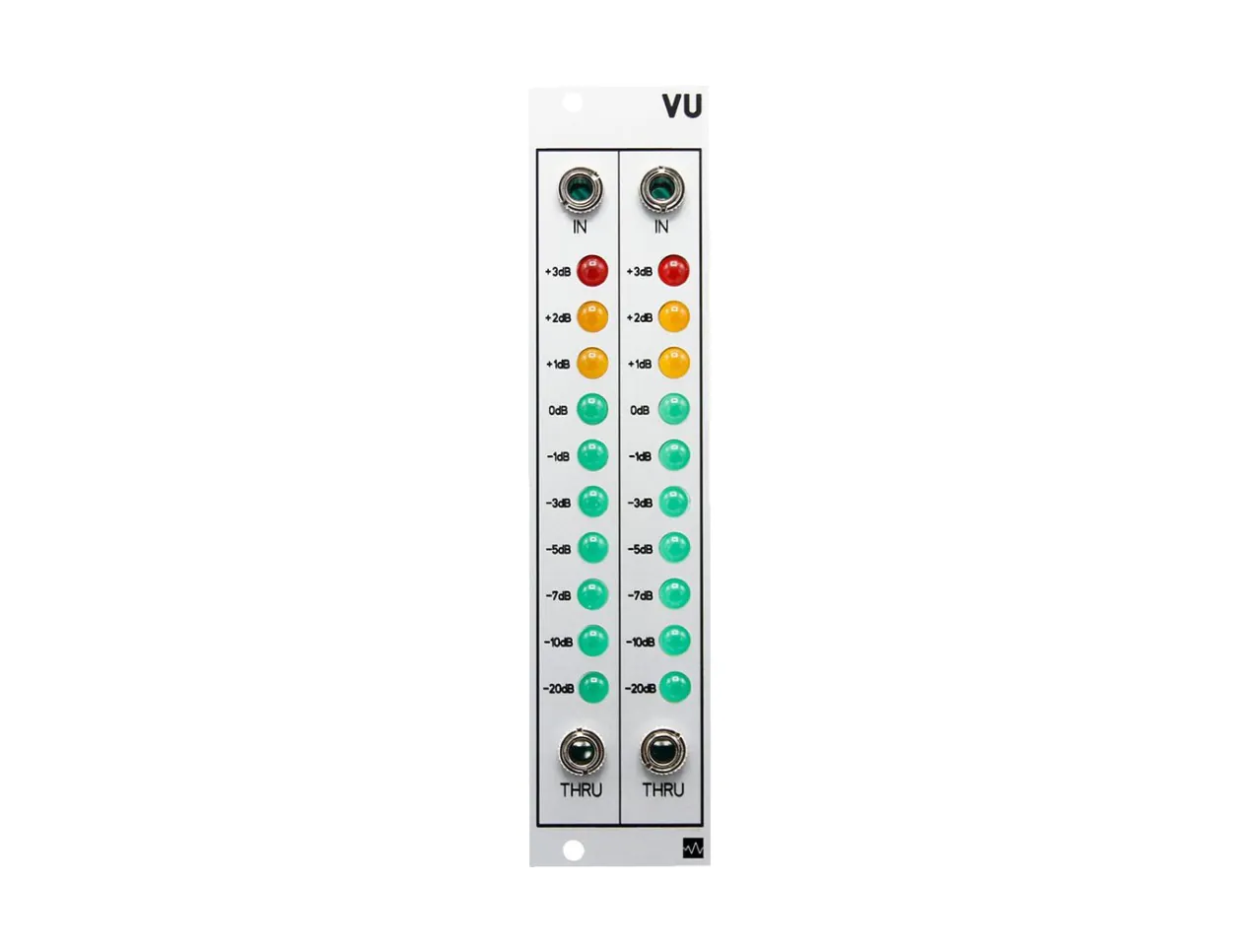

Wavefonix Dual VU Meter

Keep your eyes on the healthy-signal monitoring prize with Wavefonix's Dual VU Meter, a 10-segment LED meter for monitoring any signal's VU levels. Two variable LED monitors allow you to pass your signal onto its final destination as well as adjust the scaling for any incoming signal—although 0dB is set for line-level (+4dBu), it can be matched to view anything up to modular-level (+/-5V). With accessibility to view other Wavefonix modules signals via rear jumpers, the Dual VU Meter is a solid add-on for anyone wanting to solely focus on their modular set and make sure everything's running smoothly for recording or live-mixing.

Dual VU Meter Features

  • 10-segment VU meter
  • AC coupled inputs with pass-through
  • Calibrated to monitor line-level (+4dBu) at 0dB
  • Adjustable range to meet up to modular-level signals (+/-5V)
  • Rear pin-header for monitoring Wavefonix 3-Channel Stereo Panning Mixer or Audio Output modules via jumper
  • Eurorack module
  • Width: 6hp
  • Depth: 40mm
  • Current draw: 70mA @ +12V, 10mA @ -12V
