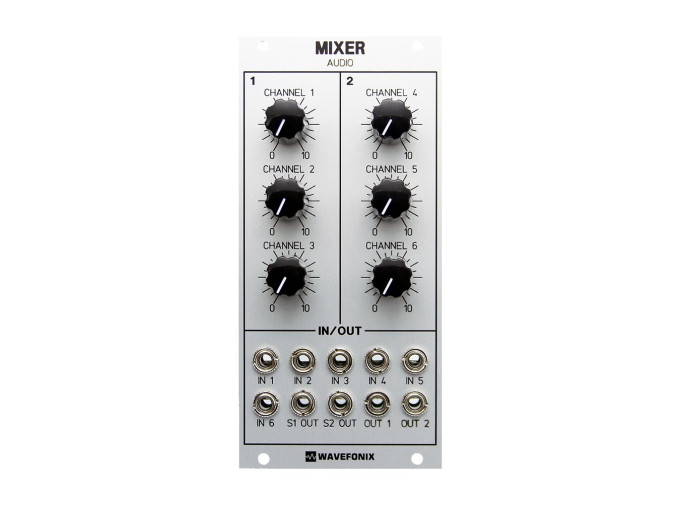

Wavefonix 6-Channel Audio Mixer
Sporting simple design with a number of routing options, the 6-Channel Audio Mixer from Wavefonix is a multi-channel mixer designed to handle and sum down up to six audio channels. Control individual channel levels with a logarithmic response time for natural audio mixing, whether it's fully designed sounds or just oscillators. Paired in threes, the section output divides the inputs into two groups for separate processing/routing while the main two outputs are identical summations of all six inputs. Whether creating complex starting points or are trying to mix down all your final signals, look no further than the 6-Channel Audio Mixer.
6-Channel Audio Mixer Features
- Multi-channel audio mixer module
- Individual AC-coupled channels with input gain controls
- Two section outputs (1+2+3 and 4+5+6)
- Two summed and identical final outputs
- Logarithmic time response
- Eurorack module
- Width: 12hp
- Depth: 25mm
- Current draw: 20mA @ +12V, 20mA @ -12V
