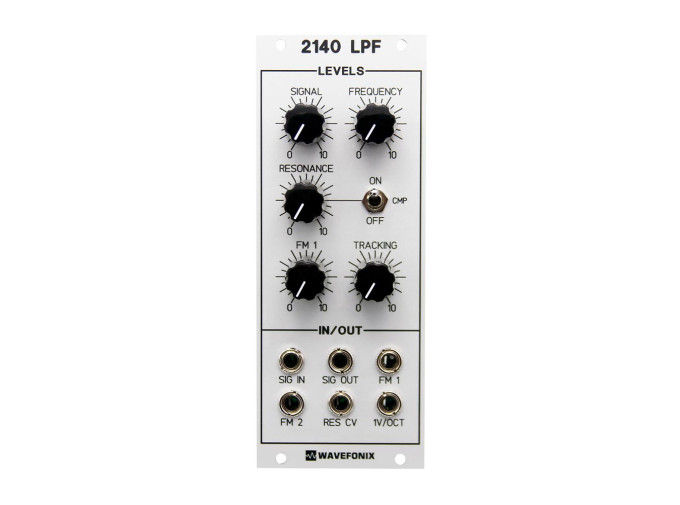

Wavefonix 2140 Low-Pass Filter
Inject buttery smooth and powerful filtering into your modular system with Wavefonix's 2140 LPF, a 4-pole low pass filter with flexible controls and tons of modulation opportunities. Found in the Prophet 5 Rev 4, the 2140 LPF uses a filter IC that produces a creamy and awe-inspiring slope and filter shape for carving out any sound source. The onboard controls of cutoff and resonance both have the flexibility of being manually or automatically modulated via the CV inputs, with the cutoff frequency sporting two FM inputs as well as a 1V/Oct input for melodic tracking. The incoming tracking can also be limited thanks to the included tracking attenuator, and signal loss from resonance increase is a thing of the past with an engageable resonance compensation switch. With adjustable input signal to drive the filter even harder, the 2140 LPF will sound amazing on leads, basses, pads, and anything you can imagine needing taming and shaping.
2140 Low-Pass Filter Features
- Four-pole low pass filter module
- Uses SSI2140 IC found in the Prophet 5 Rev 4, which is based on the original 2040 filter found in Prophet 5 Rev 1 and 2
- Input signal attenuator
- Filter frequency control with two FM inputs, attenuator for the first
- 1V/Oct tracking input on the cutoff frequency as well as a tracking amount attenuator
- Resonance control with CV input
- Resonance compensation for increased gain amounted from any signal loss
- Eurorack module
- Width: 10hp
- Depth: 40mm
- Current draw: 30mA @ +12V, 30mA @ -12V
