Trogotronici/4 Constellation Voltage-Controlled Light Array

Trogotronic i/4 Constellation

Create brain melting light patterns for live performance and video work with the i/4 Constellation Voltage-controlled Light Array from Trogotronic, a CV and audio reactive lighting system. This bundle includes four powerful industrial style work lights which connect to the main unit, allowing for immediate exploration of strobe patterns, shadow spirals, and more. Six inputs for CV and audio let you connect this system to your musical gear, letting you arrange complex patterns with independent control or create an instant luminous assault with only a single patch cable.

The four CV/audio inputs let you control each light independently with its own signal, with attenuators and onboard LEDs so you can keep track of what's happening on the main unit. To make set up both simple and powerful, input one will be multiplied to the subsequent inputs when nothing else is patched. On the frequency input, higher voltages will result in faster flashes of light, extending all the way to always-on and down to a sputtering strobe. Turn on or off this internal oscillation and adjust manually with the onboard switch and knob control. Alternatively, the Seq input looks for a leading edge or voltage increase to activate the next lamp in sequence, with the threshold set by the preamp control. Create rhythmic flashes with simple clock signals, or use audio at this input for a chaotically spiralling light array that dances in time with your music.

If you're looking for a way to get your noise table looking more menacing, want to add a powerful light show to your modular performance, or any other sort of bulb-seeking pursuit, the i/4 Constellation Array from Trogotronic is likely a bright idea.

i/4 Constellation Features

• CV and audio-reactive 4-channel light array
• Use CV or audio to toggle and affect four industrial-style work lights
• Control lights independently with 4 CV/audio inputs
• Input 1 cascades to subsequent inputs when nothing else patched
• Sequence through light outputs with Seq input
• Preamp control sets sequence step threshold
• Adjust frequency of strobe with Frequency input and control from always-on to medium strobe
• Onboard indicator lamps
• Channel and sequence sensitivity knobs per channel

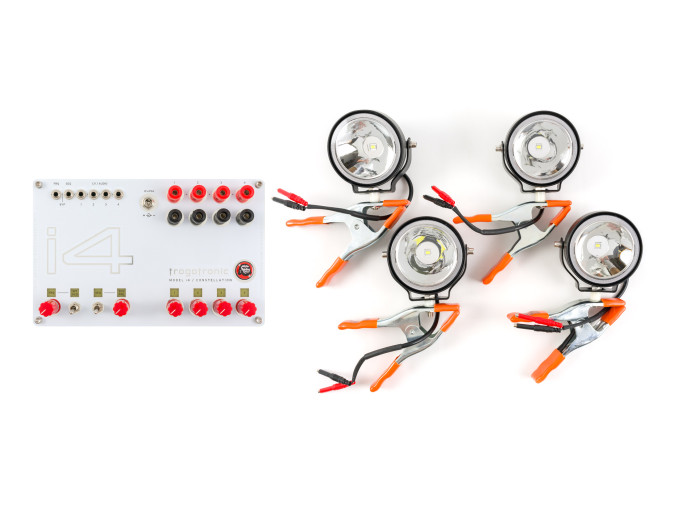

• Includes 4 lamp heads with patch cords and PSU
