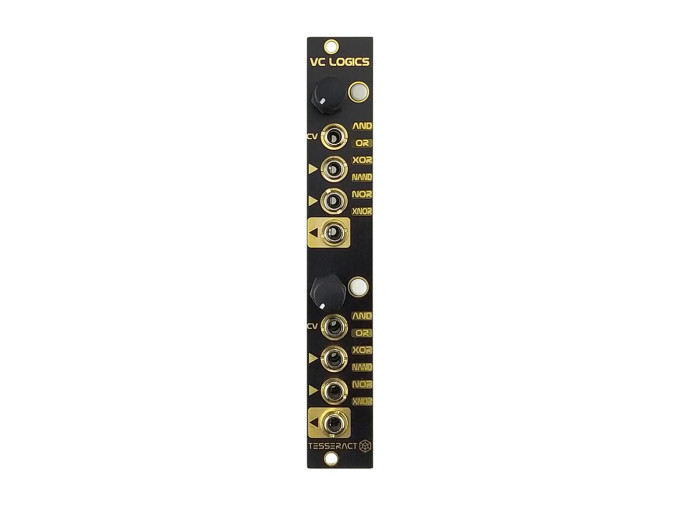

Tesseract Modular VC Logics

VC Logics from Tesseract is a dual-channel logic processor—perfect for generating new rhythmic patterns from two independent streams of triggers. The available boolean operators are AND, OR, XOR, NAND, NOR, XNOR, and they are selectable by a pushbutton, CV signal or an attenuator which doubles as an offset for an incoming control voltage signal. Furthermore, the CV1 input can be reconfigured to respond to triggers via a jumper on the back of the module, fostering an automated sequential switching between boolean operators.

Each channel can operate in one of two modes: Free and Quantized. In the former the logic output is generated continuously based on the signals at the inputs, and logic type selected. In Quantized mode the output won't change until there is a change in any of the input signals, which is especially great for timing-sensitive patches. The modes are easily switchable by a long press on the buttons accommodating each channel.

If you are looking for a small addition to your rack that would spice up your rhythms and add variation, VC Logics might just be what you need.

VC Logics Features

  • Voltage-controllable logic module
  • Two independent channels
  • Operators: AND, OR, XOR, NAND, NOR, XNOR
  • Boolean operators are switchable by attenuators, push buttons or CV
  • CV1 can be reconfigured to respond to triggers via a jumper on the back of the module
  • Eurorack module
  • Width: 4hp
  • Depth: 20mm
  • Current draw: 42mA @ +12V, 10mA @ -12V
