Tesseract Modular Blinks

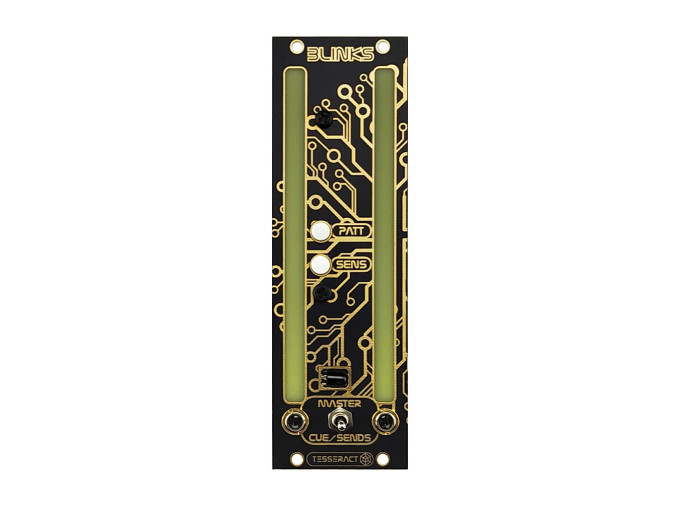

Blinks from Tesseract Modular is a two-channel Eurorack VU meter that displays signal amplitude with an easy-to-read LED interface. Each channel features an input and 24 RGB LEDs to indicate amplitude. Select one of six LED patterns using the PATT button and use the SENS button to adjust the sensitivity with seven sensitivity levels. SENS also doubles as a brightness adjustment that is suited for everything from bright studio lights to in-club darkness. Using the rear headers, connect up to three stereo signals to a buffered input. Blinks is a useful utility that indicates what's going on with your modular with a simple interface.

Blinks Features

  • Two-channel VU meter
  • 24 RGB LEDs per channel
  • Six patterns
  • Seven sensitivity levels
  • Brightness adjustment
  • Rear headers allow for up to three stereo signals
  • Internal +5V regulator for systems without a dedicated +5V rail
  • Eurorack module
  • Width: 8hp
  • Depth: 20mm
  • Current draw: 4mA @ +12V, 4mA @ -12V, 30mA @ +5V
