Tegeler Audio ManufakturVocal Leveler 500 Optical Compressor for 500 Series


Special Order Reserve yours today!

Special Order

We don't usually stock this item but will place an order with the manufacturer as soon as you check out. Shipping times vary, so please contact us for more information.
  • Free Shipping
  • Warranty
  • Low Price Guarantee'
    Low Prices
Special order delivery times vary. Note that special orders may not be returned or cancelled. Feel free to reach out for more info!

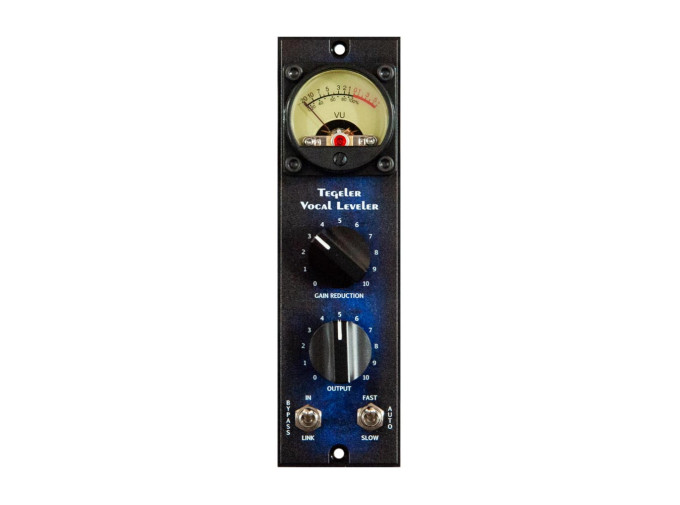

Tegeler Audio Manufaktur Vocal Leveler 500

Borrowing the same optical compressor circuit from their VTRC, the Tegeler Audio Vocal Leveler 500 is the perfect choice for smoothly shaping the dynamics of vocals, guitars, or any other instrument. Compression doesn't need to be complicated, and so the Vocal Leveler keeps things simple with only a few essential controls. Define the intensity of compression with the Gain Reduction control, and manage your volume with the Output level control. Beyond that, a bypass switch engages the effect, or allows parameters to be linked from a second unit for stereo operation, while a Release switch shapes the tail-end of compression to be Fast, Slow, or Automatically adjusted. For additionally utility, all potentiometers are stepped for exact recall of settings, and an internal FET circuit provides some special harmonic goodness as an added bonus. Give your dynamics a bit of a nudge with the Vocal Leveler 500 by Tegeler Audio.

Vocal Leveler 500 Features

  • 500-series optical compressor
  • Circuit borrowed from Vari Tube Recording Channel VTRC
  • Designed for vocals, but will also work great on guitars and other instruments
  • Straightforward control layout: Gain Reduction and Output level
  • Bypass + stereo link switch
  • Release switch with 3 modes: Fast, Slow, and Auto
  • Frequency Range: 20 - 20.000Hz
  • Maximum Input Level: 20 dBu
  • Input Impedance: ≥ 2.4kΩ
  • Output Impedance: < 600 Ω
  • Operating level +4 dBu
  • Maximum Output Level: 21 dBu
  • Dynamic Range: 100 dB
  • Max. Gain Reduction: -12 dB
  • Power draw: 80mA
  • Weight: 540g
