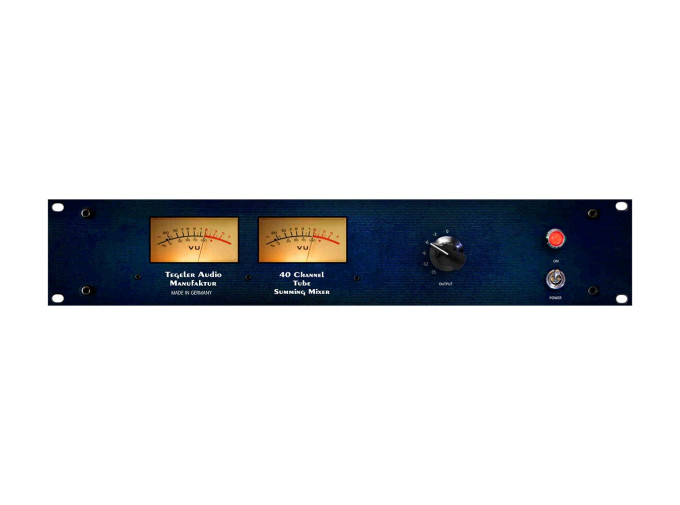

Tegeler Audio Manufaktur Tube Summing Mixer TSM

Keep your modern conveniences while retaining the sound of analog equipment with the 40-input Tube Summing Mixer from Tegeler Audio. Simple and straight-to-the-point, the TSM has but a single stepped output knob, and with most inputs using DB25 connectors, it's designed to integrate seamlessly into your professional audio workflow. Under the hood are active tubes and transformers on the output stage, responsible for imparting a wonderful sound characteristic. The TSM can also be chained together if you find yourself needing more than the 40 inputs available. If you are loath to give up your digital accouterments, yet yearn for the warmth of an analog control board, but also want to save space, the Tegeler Audio Manufaktur Tube Summing Mixer is what you're looking for.

Tube Summing Mixer TSM Features

  • 40 Input tube summing mixer
  • 32 Inputs via DB25 connectors
  • 8 Inputs via balanced 1/4" jacks
  • Internal mix bus with up to +22 dBu
  • Output Level switch in -3db increments
  • Active Tubes and Transformer output stage
  • Frequency Response: 20Hz - 40kHz
  • Maximum Input Level: +22 dBu
  • Input Impedance: ≥ 10kΩ
  • Output Impedance: < 600 Ω
  • Maximum Output Level: +24 dBu
  • Dynamic Range: ≥ 110 dB
  • Power voltage: 230 V~/50Hz or 115V~/60Hz
  • Maximum Power Consumption: < 25 W
  • Dimensions: 88.1 x 483 x 250 mm
