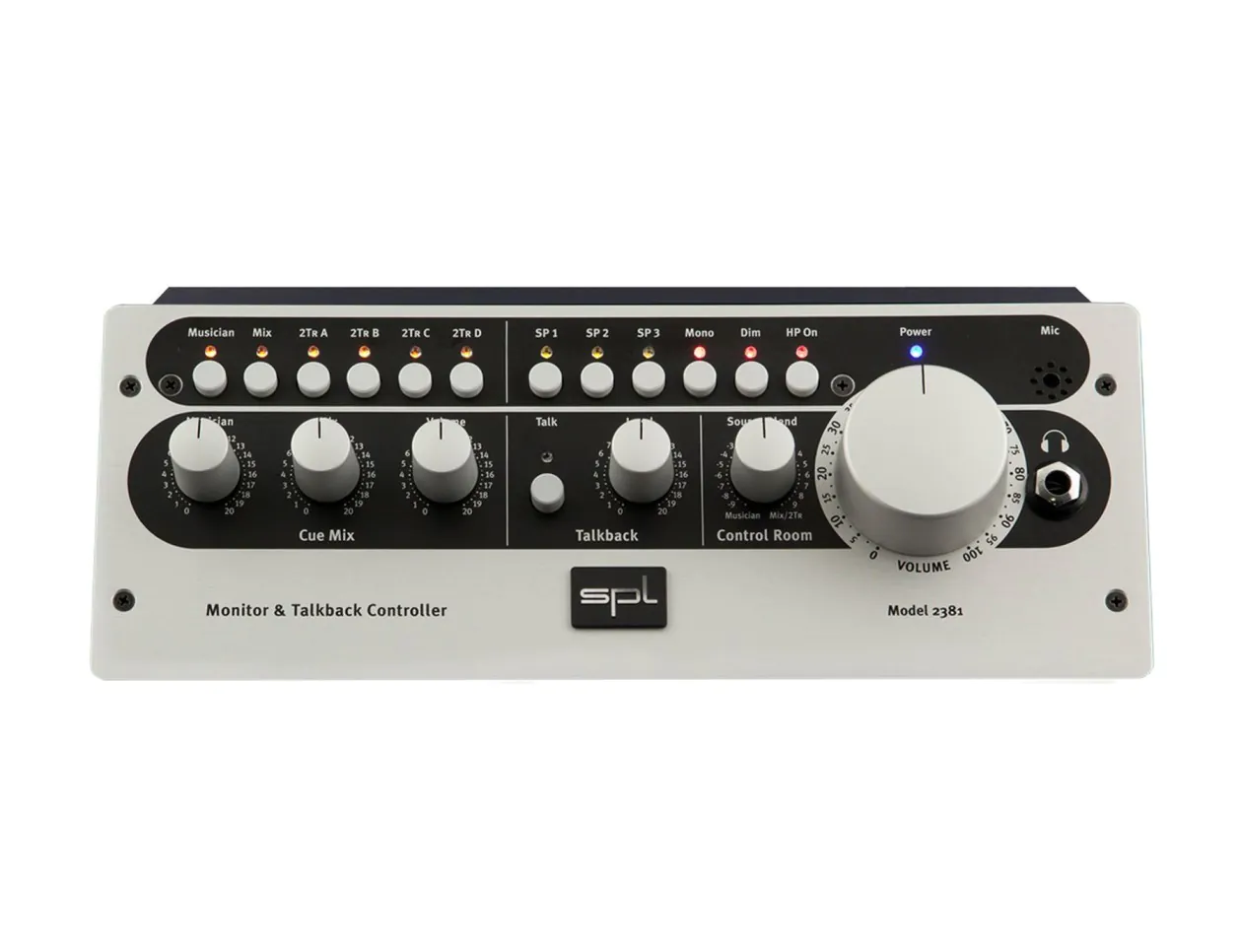

SPL MTC
The SPL MTC melds volume control, stereo loudspeaker management, and source switching with convenient talkback and cue mixing functionality. The unit’s completely analog design affords pristine signal processing without the need for VCAs or DACs. Additionally, its I/O section features six stereo inputs, XLR outputs, and a slave output. All of this and more makes the MTC ideal for both audio and multimedia production applications.
MTC Features
- A fully discrete, analog design dispenses with VCAs, DACs, etc., providing loss-free signal processing
- Six rear-panel stereo inputs (four balanced and two unbalanced sources), balanced XLR outputs for three loudspeaker pairs, slave output
- Monitoring: source and loudspeaker selection, mono, dim, mute, switchable headphone output
- Talkback: built in microphone, separate output, footswitch input
- Cue-Mix: separate output, musician level, mix level and volume controls
- SPL‘s custom-made balancing stages for the MTC‘s I/O architecture ensure extended frequency range up to 100 kHz, exceptional dynamic spectrum and excellent common mode rejection
- The rugged and ergonomic desktop enclosure with slanted front panel harmonizes perfectly with the desktop production environment
- Frequency Range: 10 Hz - 100 kHz (+/- 3 dB)
- Input Impedance balanced via TRS: 50 kOhm/unbalanced via RCA: › 10 kOhm
- Output Impedance balanced via RCA: ‹600 Ohm
- THD + N: 0,006 %
- Noise (A-weighted): › 80 dBu
- Overload Resistance: +22 dBu
- Dynamic Range: 110 dB CMRR: › 70 dBu
- Phase: -20°@20 kHz
- Crosstalk L-R: › -70 dB@1 kHz/0 dBu
- Dimensions: H x B x T (mm): 91 x 272 x 220
- Weight 2,3 kg
