Shakmat ModularTriple Steeple Triple Envelope Generator

Item#
N13-05615
8hp
$299.00

In Stock Available immediately!
  • Free Shipping
    Free
    Shipping
  • No Hassle Returns
    No Hassle
    Returns
  • Warranty
    Extended
    Warranty
  • Low Price Guarantee'
    Low Prices
    Guaranteed

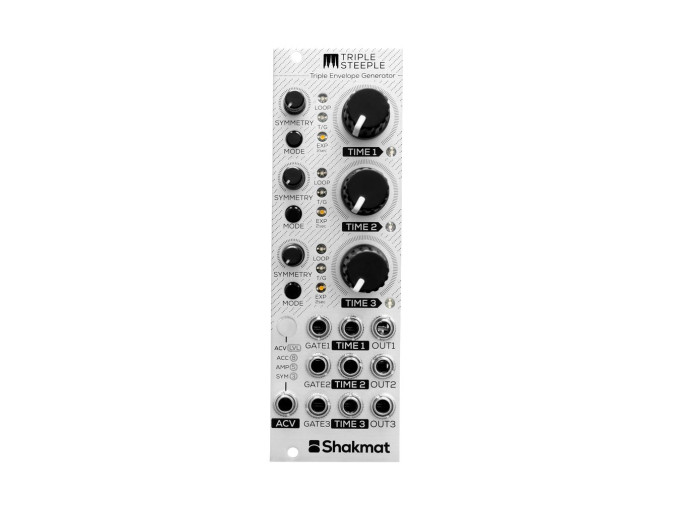

Shakmat Modular Triple Steeple

Envelopes are one of the most important modulation sources and with the Triple Steeple, Shakmat gives you three flexible function generators in a compact package. Each channel can run in one of five modes: triggered, gated, looped, gated or clocked loop, and each channel also has an independent time knob which is CV controllable. Symmetry trimmers let you move from a triangular shape to different ramps and each channel can be looped, essentially giving you three LFOs, as well. An assignable CV input is shared amongst all three modulation channels and can modulate the symmetry or amplitude of any channel. Whether it's one of your only modulation sources or part of a vast network, the Triple Steeple from Shakmat is a great option for anyone looking for versatile modulation.

Triple Steeple Features

  • Triple envelope/LFO generator
  • Dedicated time controls per channel
  • Switch between trigger and gate inputs
  • 5 Modes : triggered, gated, looped, gated loop, and clocked loop
  • Assignable CV input for symmetry or amplitude
  • Eurorack module
  • Width: 8hp
  • Depth: 21mm
  • Current draw: 40mA @ +12V, 8mA @ -12V
Product Demo Videos
Shakmat Triple Steeple: Demo
The triple steeple is a three-channel envelope generator with control over time and symmetry. With five envelope modes, linear or exponential response, CV control over time, an assignable CV input, and internal normalizations, the module will provide the generation of anything from basic envelope shapes to complex modulation signals.
