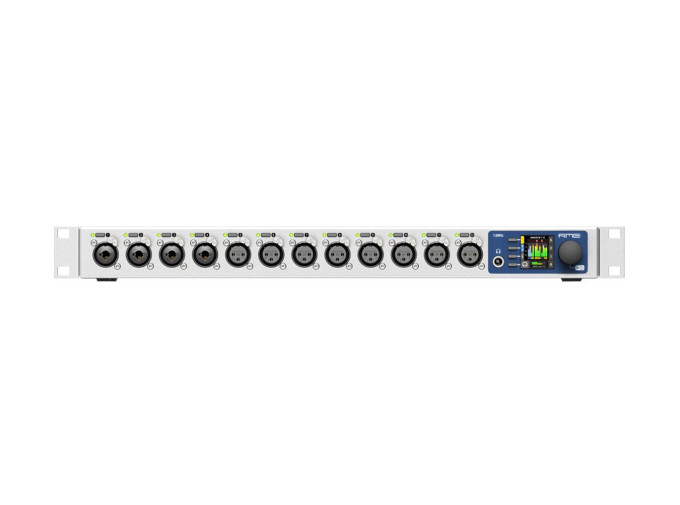

RME 12Mic-D Microphone Preamp with Dante
If you need to interface with your Dante system or need a Dante-to-MADI converter, then the 12Mic-D, digitally controlled mic preamp system is what you need. With a total of 12 inputs, all of them capable of handling XLR and four of them being XLR/Balanced Line combo jacks, you can throw everything you have into this 1U 19" unit. Connect to your Dante network with 2 fully redundant ports, or use the MADI connection—both optical and coaxial—and with three available ADAT outputs, there is something for everyone. All of the mic preamps are designed to be transparent and offer 75dB of gain with a maximum input level of +18dBu. If you are using a Dante, MADI, ADAT, or any combination of these in your studio or live setup, the 12Mic-D from RME is the solution to your input woes.
12Mic-D Features
- 12 transparent mic preamps designed to connect to Dante, MADI, or ADAT systems
- 4x XLR/Line In combo jacks, 8x XLR inputs
- 2x Redundant Dante Gigabit Ethernet ports
- MADI Coaxial I/O
- MADI optical connector for optional SFP module
- 3x ADAT outputs
- Headphone output
- Word clock I/O
- USB for firmware and remote control
- Dimensions: 1U 19" Rackmount
- Weight: 2.8 kg / 6.2 lbs
- 2x RJ45 for Dante network connectivity, Single Speed: up to 64 channels 24 bit 48 kHz, Double Speed: up to 32 channels 24 bit 96 kHz, Quad Speed: up to 16 channels 24 bit 192 kHz
- MADI accepts 56 and 64 channel mode, plus 96k frame
- MADI Single Speed: up to 64 channels 24 bit 48 kHz, Double Speed: up to 32 channels 24 bit 96 kHz, Quad Speed: up to 16 channels 24 bit 192 kHz
- 75 ohm Word Clock BNC connectivity
